Kenmerken
Conditie
Nieuw
Handelsnaam fabrikant
Tsakirids
Postadres fabrikant
.
E-mailadres fabrikant
.
Beschrijving

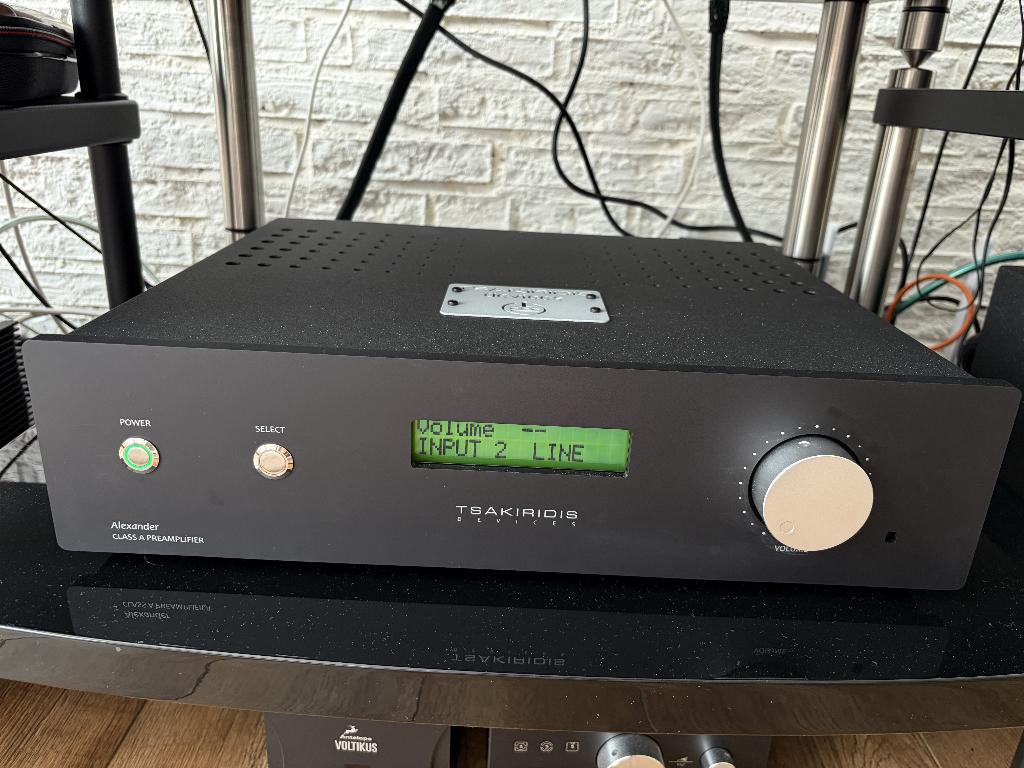

We are the official distributor in Netherlands for Tsakiridis Devices.
NEW Product: Retail price: €2,758
Please, check out our Audio-Vault website for more information.
Features
Inputs: 5 line inputs (4 RCA 1 XLR) & 1 Through input
Phono input: MM cartridge
Outputs: 2 pre output (1 RCA, 1XLR) & 1 Tape output
Input selection: High grade signal relays
Input/Output connectors: RCA & XLR gold plated
Remote control: Yes
Volume control: Blue Alps
Informative Display: Yes
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Evo capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformers: 2 Handmade 40W each & 1 choke
Phono stage tubes: 4x12AT7
Line stage tubes: 2x12AX7 & 2x12AT7
Specifications
Voltage Gain: 14db
Input impedance: 47 kOhm
Output impedance: 200 Ohm
Maximum Output Voltage: 20V rms
Input Overload Voltage: 4V rms
Signal to Noise Ratio (SNR): 90db
Channel separation: 78db
Rise time: 3us @ 10kHz
Harmonic distortion: 1V @ 1kHz 0.40%
Frequency response: -3db 5Hz-100,000Hz
Power consumption: 55W
Weight: 12kgr
Dimensions (WxDxH): (43x35x12)cm
NEW Product: Retail price: €2,758
Please, check out our Audio-Vault website for more information.
Features
Inputs: 5 line inputs (4 RCA 1 XLR) & 1 Through input
Phono input: MM cartridge
Outputs: 2 pre output (1 RCA, 1XLR) & 1 Tape output
Input selection: High grade signal relays
Input/Output connectors: RCA & XLR gold plated
Remote control: Yes
Volume control: Blue Alps
Informative Display: Yes
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Evo capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformers: 2 Handmade 40W each & 1 choke
Phono stage tubes: 4x12AT7
Line stage tubes: 2x12AX7 & 2x12AT7
Specifications
Voltage Gain: 14db
Input impedance: 47 kOhm
Output impedance: 200 Ohm
Maximum Output Voltage: 20V rms
Input Overload Voltage: 4V rms
Signal to Noise Ratio (SNR): 90db
Channel separation: 78db
Rise time: 3us @ 10kHz
Harmonic distortion: 1V @ 1kHz 0.40%
Frequency response: -3db 5Hz-100,000Hz
Power consumption: 55W
Weight: 12kgr
Dimensions (WxDxH): (43x35x12)cm
...
...
...
...
...
...
...
...
...
...
...
...
Venlo
287x bekeken
2x bewaard
Sinds 8 apr '26
Advertentienummer: m2386443267
