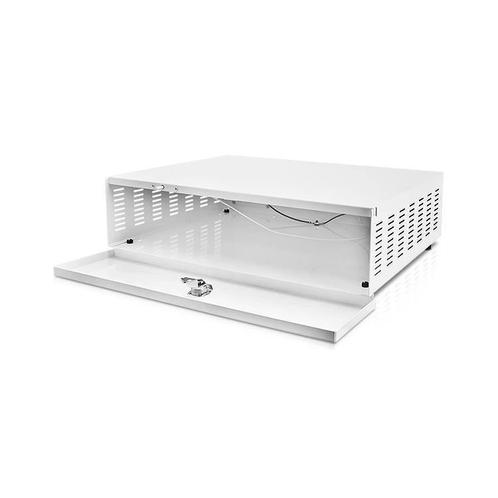

Afsluitbare metalen kast t.b.v. Recorder klein

Afsluitbare metalen kast t.b.v. Recorder klein modelTbv klein model recorder (Hikvision of Dahua 4 kanaals recorder) in te plaatsen. Inclusief slot en sleutels. Metalen constructie.

External dimensions of the enclosure: W=400, H+H3=100+20, D=305 [+/- 2mm]

External dimensions of the front panel: W1=405, H1=110 [+/- 2mm]

Dimensions of recorder space: W2=355, H2=90 D2=285 [+/- 2mm]

Weight net/gross: 3,60kg / 3,85kg [+/-0,1kg]

Operating environment: class II, -10°C÷ 40°C

Material description: sheet steel DC01, thickness: 1,0mm, protection anticorrosion, color: RAL 9003

Destination: indoor

Tamper protection: 1 x microswitch: opening, 0,5A@50V/DC max.

Closing: lockable x 2 pcs

Notes: distance from the wall 20mm, optional mounting of the ARAW45*

Declaration, warranty: CE, 2 year from the production date
