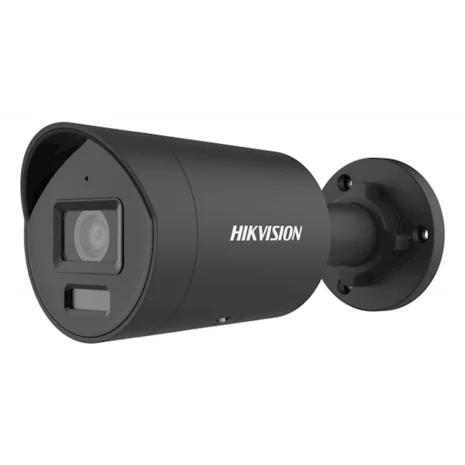

Hikvision DS-2CD2046G2-IU/SL Bullet 4MP, 2.8mm lens PoE,

DS-2CD2046G2-IU/SL Bullet 4MP, 2.8mm lens PoE, siren/flashlight acusense

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP67)

  Specification
  Camera
  Image Sensor 1/3" Progressive Scan CMOS
  Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/w: 0 Lux with IR
  Shutter Time 1/3 s to 1/100,000 s
  Day & Night IR cut filter
  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  Max. Resolution 2688 × 1520
  Lens
  Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
  Iris Type Fixed
  Focal Length & FOV
  2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°
  4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°
  6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
  Aperture F1.4
  Lens Mount M12
  DORI
  DORI
  2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
  4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
  6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
  Illuminator
  Supplement Light Type IR
  Supplement Light Range Up to 40 m
  Smart Supplement Light Yes
  IR Wavelength 850 nm
  Video
  Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  Third Stream
  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  *Third stream is supported under certain settings.
  Video Compression
  Main stream: H.265/H.264/H.265+/H.264+
  Sub-stream: H.265/H.264/MJPEG
  Third stream: H.265/H.264
  *Third stream is supported under certain settings.
  Video Bit Rate 32 Kbps to 8 Mbps
  H.264 Type Baseline Profile/Main Profile/High Profile
  H.265 Type Main Profile
  Bit Rate Control CBR/VBR
  Scalable Video Coding (SVC) H.264 and H.265 encoding
  Region of Interest (ROI) 1 fixed region for main stream and sub-stream
  Audio
  Environment Noise Filtering Yes
  Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
  (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  Audio Type Mono sound
  Network
  Simultaneous Live View Up to 6 channels
  API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  Protocols
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
  IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket,
  WebSockets
  User/Host Up to 32 users. 3 user levels: administrator, operator and user
  Security
  Password protection, complicated password, HTTPS encryption, IP address filter,
  Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
  and digest authentication for Open Network Video Interface
  Network Storage
  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  Together with high-end Hikvision memory card, memory card encryption and health
  detection are supported.
  Client iVMS-4200, Hik-Connect, Hik-Central
  Web Browser
  Plug-in required live view: IE 10, IE 11
  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  SNR 52 dB
  Day/Night Switch Day, Night, Auto, Schedule
  Image Enhancement BLC, HLC, 3D DNR
  Image Parameters Switch Yes
  Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
  adjustable by client software or web browser
  Wide Dynamic Range (WDR) 120 dB
  Interface
  Built-in Microphone Yes
  Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
  On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  Reset Key Yes
  Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  Event
  Basic Event Motion detection (human and vehicle targets classification), video tampering alarm,
  exception
  Smart Event
  Line crossing detection, intrusion detection, region entrance detection, region exiting
  detection
  Scene change detection
  Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
  capture, strobe light, audible warning, send email
  Deep Learning Function
  Face Capture Yes
  Perimeter Protection Line crossing, intrusion, region entrance, region exiting
  Support alarm triggering by specified target types (human and vehicle)
  General
  General Function
  Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
  counter
  Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  Startup and Operating
  Conditions
  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  Material Metal
  Dimension 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
  Package Dimension 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  Weight Approx. 590 g (1.3 lb.)
  With Package Weight Approx. 820 g (1.8 lb.)
  Power
  12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity
  protection
  PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
  Language
  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
  Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
  Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
  Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  Approval
  EMC
  FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
  61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
  (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  Safety
  UL (UL 60950-1);
  CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
  CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
  BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);
  LOA (IEC/EN 60950-1)
  Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  Protection IP67 (IEC 60529-2013)
