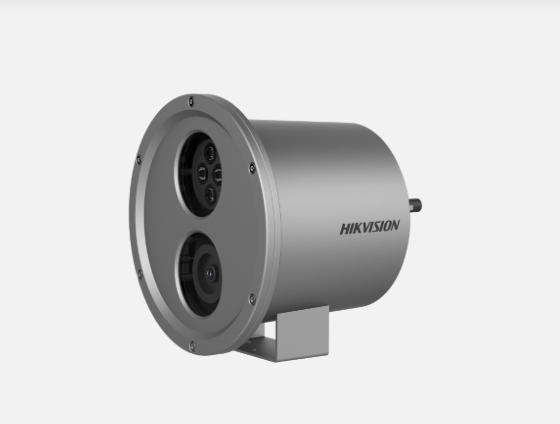

Hikvision DS-2XC6244G0-L

Bullet Underwater Network Camera

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light
• Shutter Time1/3 s to 1/100,000 s

• Lens
• Lens TypeVarifocal lens, 3 to 9 mm
• Focal Length & FOV3 to 9 mm, horizontal FOV 87° to 45.8°, vertical FOV 46° to 25.6°, diagonal FOV 104° to 52.4°
• ApertureF1.0

• DORI
• DORI

  Wide: D: 55.2 m, O: 21.9 m, R: 11.0 m, I: 5.5 m

  Tele: D: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.4 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 10 m

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)5 fixed regions for each stream
• Target CroppingYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI, ISUP 5.0
• User/Host

  Up to 32 users

  3 levels: Administrator, Operator and User

• Network StorageNAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE10, IE11

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, HLC, 3D DNR, defog

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB

  *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Scene change detection, unattended baggage detection, object removal detection

• General
• Power

  36 VDC ± 20%, 0.6 A, max. 17 W, two-core terminal block

  PoE (802.3.at, Class 3, 42.5 V to 57 V), 0.45 A to 0.3 A, 17 W

• MaterialSUS 316L Metal
• Dimension210 mm × 210 mm × 205 mm (8.3" × 8.3" × 8.1")
• Package Dimension700 mm × 530 mm × 365 mm (27.6" × 20.9" × 14.4")

• Approx. 8.300 kg (18.38 lb.)



• With Package WeightApprox. 12.300 kg (27.12 lb.)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 100% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat, password protection, privacy mask, watermark, IP address filter, mirror
• Cable Length15 m (49.2 ft.) (included)

• Approval
• EMC

  FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)

  CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)

  RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015

  IC: IC-VoC (ICES-003 Issue 7:2020)

  KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

• Safety

  UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014

  CB: IEC 62368-1:2014

  BIS: IS 13252 ( Part 1) 2010+A1:2013+A2:2015

  LOA: SANS IEC60950-1

• ProtectionIP68 (IEC 60529-2013)
