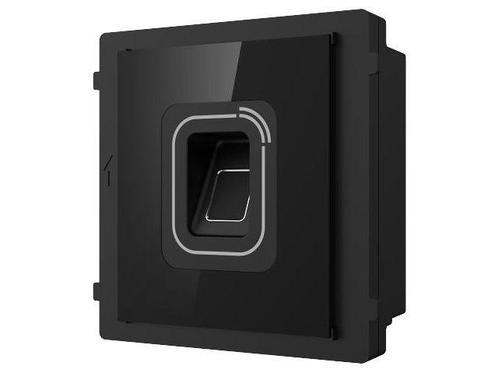

DS-KD-MFB, vingerafdruk en kaartlezermodule

HikVision Video Intercom module, Submodule vingerafdruk- en kaartlezer M1, Desfire card, wordt gevoed via de hoofdmodule, montagetoebehoren niet inbegrepen.

Te installeren met accessoires (niet inbegrepen) in of opbouw , voeding via hoofdmodule, RS485 communicatie, IP65

Specificaties:

• Capacity
• Fingerprint capacity - 1000
• Card capacity - 6000

  Authentication
• Card reading frequency - 13.56 MHz
• Card reading distance - 2 cm
• Card type M1, Desfire card

  Device interfaces
• DIP switch - 8 bits
• RS-485 - 1

  General
• Installation - Flush mounting, surface mounting
• Protective level - IP65
• Working temperature - -30 °C to 60 °C
• Working humidity - 10% to 90% (no-condensing)
• Dimension - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
• Power supply - 12 VDC, supplied by the main module
• Power consumption - 4 W
