Productinformatie

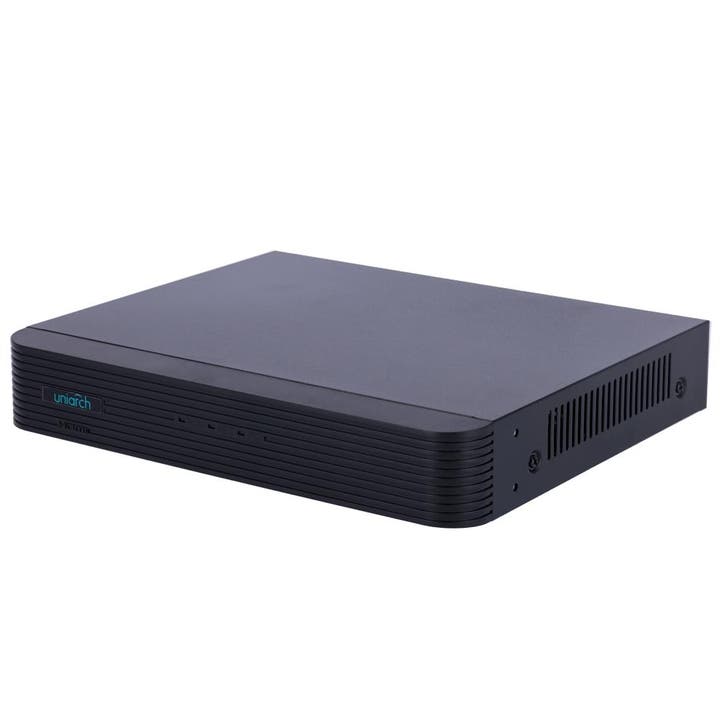

• Uniarch
• DVR 5n1
• 16 BNC videokanalen (IP-vervangbaar)
• AHD , TVI, CVI, CVBS, CVBS
• 40 Mbps bandbreedte ondersteund
• Maximale IP-resolutie 8 Mpx
• Maximale analoge resolutie 5 Mpx
• Audio
• HDMI- en VGA-uitgang
• RS485
• 2 x USB 2.0
• Muis
• Ruimte voor 1 HDD tot 6 TB
• WEB-, CMS-, smartphone- en NVR-interface
• ONVIF-compatibel

BrandUniarchVideo formatHDTVI / HDCVI / AHD / CVBS / IPVideo inputs16CH BNCHybrid configurationUp to 16 IP Channels (8Mpx) replacing all the BNC channelsVideo outputs1 HDMI Full HD, 1 VGAAudio inputs1 Channel RCAAudio outputs1 Channel RCABidirectional audioReusing the audio input/outputDisplay resolution1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768Maximum IP recording resolution8 MpxAnalog cameras supportedTVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS

CVI: 1080P@30FPS; 720@30FPSMain Stream recording encodingTVI/CVI/AHD 5MPLite@6FPS; 4MPLite@8fps; 1080PLite@15FPS; 720P@15FPSExtra Stream recording encodingD1@6FPS; D1@8FPS; D1@10FPSRecording methodManual, programmed, motion detectionInternal memory1 HDD SATA 3.5" of up to 6TB (not included)External interface2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485Remote accessWeb Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)PowerDC 12V / 10WDimensions / Weight260mm × 229mm × 47mm / 1.1 kg
