Beschrijving

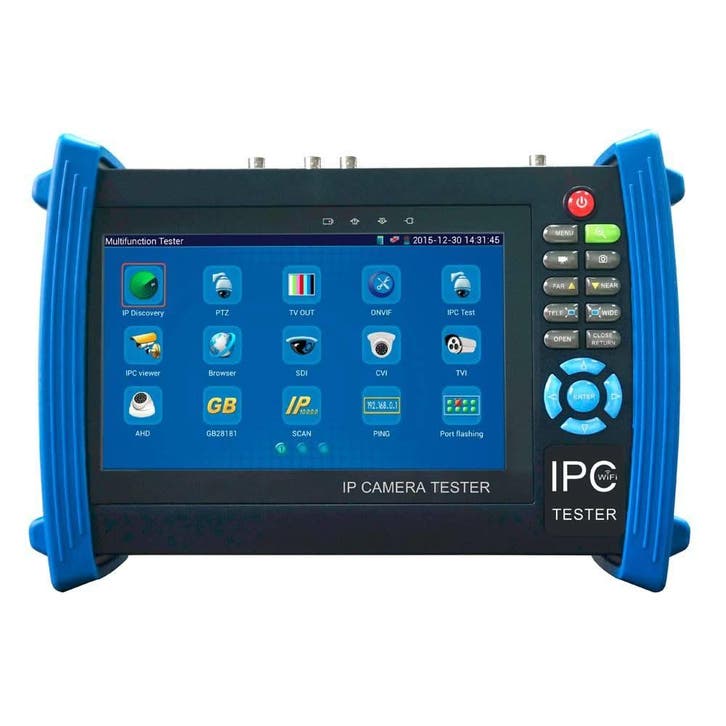

Door de diversiteit van deze tester kan de professionele installateur eenvoudig en snel diverse soorten en merken camerasystemen installeren en onderhouden. Door de rubberen stootrand is deze ideaal voor service en installatiemonteurs.
De lithium batterij (7.4V 5000mAh) heeft een operationele tijd van ongeveer 10 uur. Bij de tester zitten diverse kabels, een 8GB microSD kaart, een gebruikershandleiding, draagtas, adapter en kabeltester. Specificaties;
Camera test:
7 inch retina touch screen, 1920*1200 resolutions
H.265 & H .264 IP, 4K video display via mainstream
8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu *
HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
Rapid ONVIF, Auto log in and display image, create testing report
AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
CVBS camera test and PTZ control
IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)
Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
DC12V/2A power output, camera can be powered from DC 12Votage
48V PoE power output power
Rapid video, just by one key to detect all network cameras and auto display
Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM*
Other functions:
Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
POE & power information, DC12V& PoE power and voltage output /input measurement
Tester Play: Tester, android version mobile phone and PC display at the same time
Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot
Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
Self -update software, you can install apps with android version
Media player, 4K video files and MKV/MP4 media files play
Quick office, quick office app (support excel, word, ppt format) doc. editable
8GB SD card including
Display its genuine resolution of the IP camera images
Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
7.4 V /7000mAh Lithium Ion Polymer Battery, after 7~8 hours charging , working time lasts 16 hours
