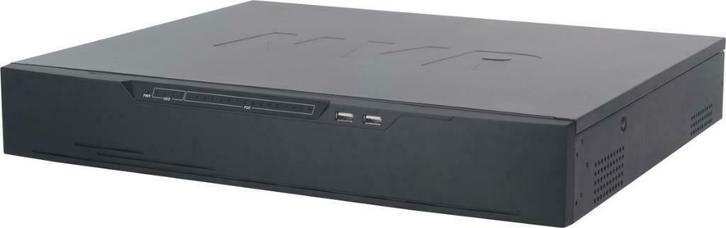

WBOX 16 kanaals Netwerk Video Recorder met 16x PoE aansluitingen.
Nieuw in doos ! Beelden en opnames te bekijken op afstand via de App.
Ondersteuning voor IP camera’s met ONVIF protocol.

Opruimingsactie : Nu van € 299 voor maar € 99 !

Diverse Ip camera's tegen actieprijzen leverbaar !

Specifications
Model WBXNV16P164S

VIDEO/AUDIO INPUT

Video Input 16ch
Incoming Bandwidth 160Mbps ,(main stream 128Mbps ,sub stream 32Mbps)
Outgoing Bandwidth Total 128Mbps
Audio Input G711_A/G711_U

VIDEO/AUDIO OUTPUT

Live View/Playback/ Recording Resolution 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/CIF/QCIF
Frame Rate 6MP/5MP/4MP/3MP@15fps; 1080P@30fps;
Live View/Playback Resolution Live View: 16ch D1/4ch 1080P/1ch 6MP,@30fps
Playback: 4ch 1080P/1ch 6MP
HDMI/VGA Output 1920x1080/60Hz,1280x720/60Hz,1024x768/60Hz
Audio Output 1ch,Line out

HARD DISK

SATA HDD 4 SATA interface for 4HDD
Mounting Mode Embedded
Capacity Up to 6TB for each disk

NETWORK

Network Interface 1 RJ45 10M/100M/1000M network interface
Protocol RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,NTP
POE Interface 16ch 100Mbps ,IEEE802.3af
POE Max Power 160W

INTERFACE

HDMI/VGA 1ch HDMI, 1ch VGA
USB USB 2.0 x2, USB 3.0 x1
Audio I/O 1ch MIC in,1ch audio line out
Alarm I/O 2ch Alarm output, 2ch Alarm input
Reset Button Yes

GENERAL

Power Supply AC110/220V,47-63Hz ,Max input 300W
Power Consumption Max 15W(without HDD,USB,POE)
Operating Temperature -10°C ~ 45°C (14°F ~ 113°F )
Operating Humidity 0% - 90% RH
Chassis 1.5U
Product Dimensions 440x376x67mm
Product Weight 4kg
