Goedendag,

Wegens wijziging plannen heb ik hier een gloednieuwe NVR van Hikvision te koop.

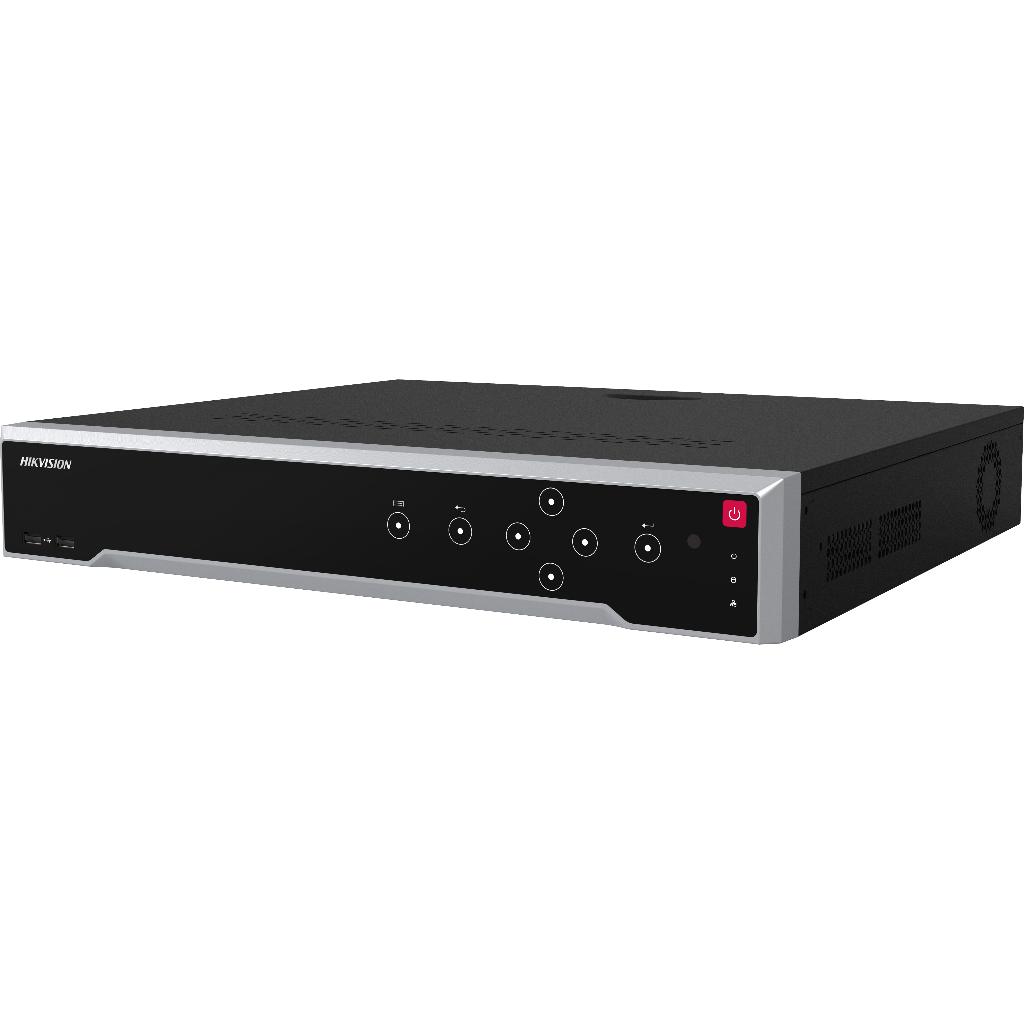

Het betreft de DS-7716NI-I4 met 4K beeld (8MP cams)

16 kanalen, 160/256Mb bandbreedte, (genoeg voor 16 stuks 8Mp camera's !), 4 harde schijven mogelijk, 2 gigabit netwerkaansluitingen, etc. etc.

Het betreft een professionele recorder uit de Pro series
Eventueel als set met enkele nieuwe camera's te koop, waaronder thermische bi spectrum camera's, PTZ beweegbare camera's, en darkfighter X en deepinview cameras. Zie hiervoor mijn andere advertenties.

Zie hieronder de specificaties.

16-ch 1.5U 4K NVR

• Up to 16 channel IP cameras can be connected
• Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
• Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
• 4 HDDs for continuous video recording
• Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
• Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
• Supports dual-stream recording to save time and bandwidth.
• Video and Audio
• IP Video Input

16-ch
Up to 12 MP resolution

• : 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

• : 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Dual-Stream RecordingSupport
• Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Synchronous Playback16-ch
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Auxiliary Interface
• Serial Interface1 RS-485 (half-duplex), 1 RS-232
• SATA 4 SATA interfaces
• eSATAN/A (1 eSATA interface is optional)
• CapacityUp to 10 TB capacity for each HDD
• Alarm In/Out16/4 (16/8 is optional)
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 20 W (without HDD)
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
• ≤ 5 kg (11 lb.)
• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 501
