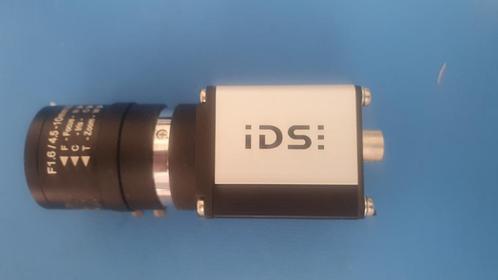

IDS GigE uEye camera met lens F1.6/4.5-10mm

Specs
Connectors,Interface connector GigE RJ45, screwable
I/O connector 6-pin Hirose connector (HR10A-7R-6PB)
Power supply 12 V - 24 V

Model
Pixel clock range 5 MHz - 68 MHz
Frame rate freerun mode 6.1 fps
Frame rate trigger (maximum) 6.0 fps
Exposure time (minimum - maximum) 0.180 ms - 14582 ms
Power consumption 2.4 W - 3.3 W
Image memory 60 MB

Sensor
Sensor type CMOS Color
Shutter Rolling shutter
Sensor characteristic Linear
Readout mode Progressive scan
Pixel Class 10 MP
Resolution 10.55 Mpix
Resolution (h x v) 3840 x 2748 Pixel
Aspect ratio 4:3
ADC 12 bit
Color depth (camera) 12 bit
Optical sensor class 1/2''"
Optical Size 6.413 mm x 4.589 mm
Optical sensor diagonal 7.89 mm (1/2.03")
Pixel size 1.67 μm
Manufacturer Onsemi
Sensor Model MT9J003STC
Gain (master/RGB) 8.5x/5.3x
AOI horizontal increased frame rate
AOI vertical increased frame rate
AOI image width / step width 448 / 4
AOI image height / step width 4 / 2
AOI position grid (horizontal/vertical) 8 / 2
Binning horizontal increased frame rate
Binning vertical increased frame rate
Binning method Color
Binning factor 2 / 4
Subsampling horizontal increased frame rate
Subsampling vertical increased frame rate
Subsampling method Color
Subsampling factor 2, 4
