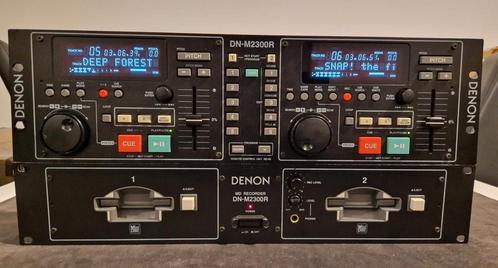

DENON DN-M2300R Professional Twin MD Recorder/Player

Denon DN-M2300R in goede staat,
Incl. user manual and system remote-cable.

 About SCMS;
Recording is possible without reception of the copy defeat restriction.
Writing of the copy defeat code is selectable.

 Play Functions (Decks 1 and 2):
• Hot Start (available on each drive)
- A total of 10 Hot Start buttons are offered (5 per drive).
- Tracks can be loaded into Hot Start one at time or five sequential
tracks at a time.
- Sound can be loaded into Hot Start from any point within the track.
- Loaded tracks can be replaced with new tracks.
- A Hot Start can also be used as a sampler, stuttering any cue point
within a track.

 • Play Mode & Finish Mode
1) Play mode
- Continuous: Plays a whole disc
- Single: Plays a track
2) Finish mode (Stop, Next, Recue)
- Stop: Stops after playing a track
- Next: Standby at the beginning of the next track after finishing a track
- Recue: After finishing a track, standby at the beginning of the same track
• Rotary Track Select Knob (easy track selection)
By turning the knob in either direction, tracks can easily be found, searching
through them one at a time, or by tens when pushing down the knob while
turning.

 Recording Functions (Deck 2 only)
• Auto Track Increment
The DN-M2300R detects the silent portion of the program material and automatically
increases the track number. The level of the silent portion can be set
within a range of -36 to -60 dB (5 settings).
In the case of digital recording, the subcode (of DAT or CD) is detected to
increase the track number automatically.

 • Shock-Proof Memory
Featuring large capacity RAM memory, the shock proof function prevents
momentary playback dropouts caused by bumps or excessive vibration.

 • A-B Seamless Loop
You can set a loop’s Start point A and End point B seamlessly “on the fly”
without interrupting playback. The B point can be updated to make the loop
longer or shorter. Length of the loop is unlimited.

 • Single/All Repeat
1) ‘Single’ playback mode: Repeat a selected track.
2) ‘Continuous’ playback mode: Repeat a whole disc.
3) ‘Program Repeat’ mode: Repeat a program sequence.

 • Pitch Control Slider (each drive): ±8.0%, 0.1% steps
• Pitch Bend: ±9.9%
Temporarily bends the pitch to match the beats. This feature simulates
“holding” or “pushing” a vinyl record.
• Instant Start
Audio starts instantly (within 0.01 sec) no delay, no lag time.
• Eject Lock
This feature is always active and will prevent removing the wrong disc while
either drive is in “Play Mode”.

 • Search Accuracy (86 frames per sec.)
Great for precise playback cueing and especially useful during editing.
• Auto Cue
After a track is selected, it is automatically cued to the point where audio starts,
rather than where the track starts. The level at which
• Auto Level Rec Start
This function will enable the machine to automatically start recording when an audio
signal being received exceeds a (user adjustable) preset dB level. Just press play from
your external audio source and the machine will automatically begin recording.
• 1 to 2 Synchro-Rec
- You can easily copy a MD from drive 1 to drive 2. (real time)
- Disc Name and Track Names are automatically copied.
• CUE Point Writing and CUE Search
- Up to 5 cue points per track
- CUE points can only be written to the MD via drive 2 but can be recalled from
either drive using CUE Search.
- CUE points can also be used to set A-B Seamless looping.
- Create up to 3 loops per track and recall them using CUE Search.
- Cue points can also be edited (erased, rewritten or added later)

 Editing Functions
• Basic Editing
- DIVIDE: Smallest edited unit is 11.6 msec (or down to 1 frame)
- ERASE TRACK/ERASE DISC: Erase one track at a time or the whole disc.
- COMBINE: Combines two tracks together to make “one”.
- MOVE: Changes a current track number to another.
- TRACK NAME: Track names can be entered using front panel controls.
- DISC NAME: Disc names can be entered using front panel controls.
• Undo/Redo Function
Up to 2 editing operations prior to the most recent one can be undone then redone, if
necessary.

 • Function Presets
Since every DJ may have different needs, the DN-M2300R provides “Functional Presets”
that can be changed according to your requirements. These presets are stored in
non-volatile memory and can be updated at any time. (11 presets for drive 1 and 17
presets for drive 2.)

 • Other Features
- Digital Outputs (2 coaxial, 1 per each drive)
- Manual eject/loading mechanism for reliability and for quick removal/insertion
- Headphone jack with volume control to monitor recording and playback of drive 2
- Large FL Display
- Mono Playback/Recording capability
- Jog/Shuttle Wheel
• Power-on Playback
Simply turning on the unit plays back audio in one of two ways:
1) the entire disc from the first track
2) the program sequence from the beginning

 • Next Track Reserve
Turning the track selector knob in either direction during playback reserves the
next track to be played and provides a seamless transfer. You can now select the
next track to be played by name. No play list required!
• End Of Message (EOM)
At the end of a track, the FL display flashes, providing a visual warning to the
operator that the track will end shortly. The point at which the EOM warning
begins is selectable within a range of 0 to 60 seconds (8 settings).
• Program Play
This function can program tracks to be played back in advance, including their
playing order, one time or every time. By using internal memory, a total of six
MDs (3 per drive), (25 tracks per disc) can be stored. Once stored, the
DN-M2300R will automatically recognize the disc and activate program play.

 Specifications:
Sampling Frequency: 44.1 kHz
Quantization Bits: A/D converter: 16 bit, D/A converter: 18 bit
Frequency Response: 20 to 20,000 Hz (±1.0 dB)
Total Harmonic Distortion: 0.02 % or less (Playback, A filter)
0.03 % or less (Recording, A filter)
Signal to Noise Ratio: 92 dB or higher (Playback, A filter)
84 dB or higher (Recording, A filter)
Channel Separation: 86 dB or higher (Playback, A filter)
80 dB or higher (Recording, A filter)
Analog Output: (1 kHz, 0 dB playback)
Connector: RCA jack
Output Level: 1.7 Vrms, 10 kohms
Headphone Output: 20 mW (30 to 40 ohms)
Analog Input:
Connector: RCA jack
Input Level: 1.7 Vrms, 47 kohms
Digital Output:
Connector: RCA jack
Signal Format: SPDIF
Output Level: 0.5 Vp-p, 75 ohms
Digital Input:
Connector: RCA jack x 2
Signal Format: SPDIF or IEC-958 Type II
Input Level: 0.3 to 1.0 Vp-p, 75 ohms
Variable Pitch Control: ±8 %
Pitch Bend: ±9.9 %
Audio Start-up Time: 0.03 second less
Frame Search Accuracy: 1 frame (1/86 second)

 Dimensions:
Recorder unit: 482 (W) x 88 (H) x 252 (D)
Control unit: 482 (W) x 132 (H) x 40 (D)
Installation
Recorder unit: 2 U
Control unit: 3 U

 Weight:
Recorder unit: 6.2 kg
Control unit: 2.3 kg
Power 230 V,consumption: 35 W.
