Philips CD624€ 50,00
Kenmerken
Type
Beschrijving

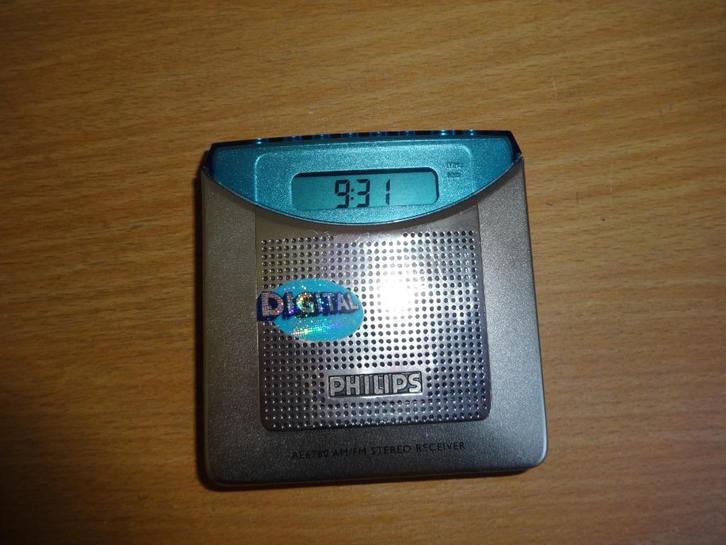

In keurig nette (zonder gebruikssporen) en in naar behoren functionerende staat Philips AM/FM stereo radio walkman met klok functie
Model: AE 6780
The Philips AE6780 is a compact, digital-tuned portable pocket radio manufactured around 2000 in the Netherlands. It supports AM (MW) and FM stereo reception with a PLL (Phase-Locked Loop) tuning system for precise station selection.
Designed for portability, it features a sleek, minimalist build measuring just 78 x 80 x 18 mm and weighing 220 g.
It includes 10 memory presets (5 per band), a digital LCD display, built-in speaker, and a headphone jack.
The FM antenna is the headphone cord, which must be fully extended for optimal reception, while the AM band uses an internal ferrite rod antenna.
The device runs on 2 AAA batteries and includes memory protection to retain settings during battery changes for up to 30 minutes
FM Band: 87.5–108 MHz (50 kHz manual / 100 kHz auto step)
AM (MW) Band: 525–1065 kHz with selectable 9 kHz or 10 kHz tuning step (switch inside battery compartment)
Tuning System: Digital PLL via TC9318FB microcontroller
Audio Amplifier: TDA2822D dual-channel IC (2 x 5 mW output)
RF Tuner IC: Unmarked 24-pin AM/FM RF/IF/MPX chip (functionally similar to Toshiba TA2111F)
Model: AE 6780
The Philips AE6780 is a compact, digital-tuned portable pocket radio manufactured around 2000 in the Netherlands. It supports AM (MW) and FM stereo reception with a PLL (Phase-Locked Loop) tuning system for precise station selection.
Designed for portability, it features a sleek, minimalist build measuring just 78 x 80 x 18 mm and weighing 220 g.
It includes 10 memory presets (5 per band), a digital LCD display, built-in speaker, and a headphone jack.
The FM antenna is the headphone cord, which must be fully extended for optimal reception, while the AM band uses an internal ferrite rod antenna.
The device runs on 2 AAA batteries and includes memory protection to retain settings during battery changes for up to 30 minutes
FM Band: 87.5–108 MHz (50 kHz manual / 100 kHz auto step)
AM (MW) Band: 525–1065 kHz with selectable 9 kHz or 10 kHz tuning step (switch inside battery compartment)
Tuning System: Digital PLL via TC9318FB microcontroller
Audio Amplifier: TDA2822D dual-channel IC (2 x 5 mW output)
RF Tuner IC: Unmarked 24-pin AM/FM RF/IF/MPX chip (functionally similar to Toshiba TA2111F)
...
...
...
...
...
...
...
...
...
...
...
...
