Meerdere exemplaren aanwezig - korting bij aankoop meerdere exemplaren!

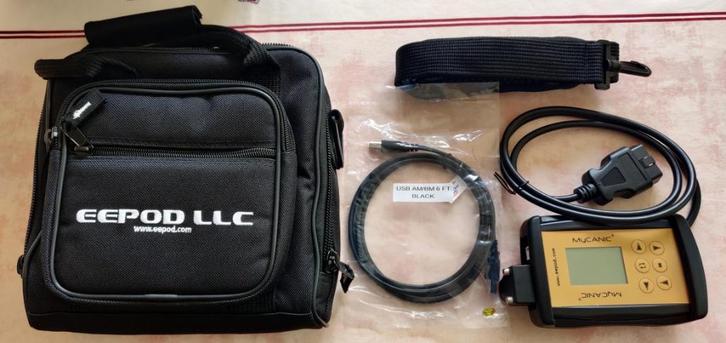

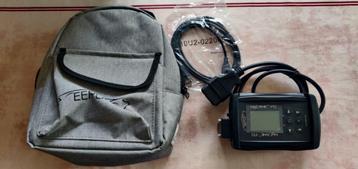

Kenners weten hoe multifunctioneel en snel deze VCI is. Inclusief specifieke MyCanic software en drivers. Krachtige, snelle en universele J2534 VCI. Compleet nieuw! Inclusief originele USB en OBD2 kabel. Dit is de zogenaamde Heavy Duty versie - met rubberen bescherming rondom. SD card mogelijkheid voor opslag.

Kan opgestuurd worden of afgehaald worden in Abcoude (bij Amsterdam zuid-oost)

Hardware
The MyCANIC® is a high-performance, pass-thru vehicle network interface with the following features:
• High-speed 32-bit microprocessor.
• Low current consumption (approximately 120mA @ 12VDC).
• Electrically isolated USB version 1.1 (and 2.0 compatible) interface to the host PC will be capable of handling full CAN network bandwidth on a single channel.
• Support for all CAN-based OBD protocols, including CAN/ISO15765, MSCAN/MSISO15765 and SWCAN/SWISO15765 (or SPCAN/SPISO15765 on 2nd generation).
• Support for ISO9141/ISO14230 K-Line on 2nd generation.
• Programmable voltage (5-20VDC, +/-100mV resolution) output with current limiting (150mA maximum).
• Four analog inputs (0-20VDC, +/-20mV resolution). Two dedicated analog inputs for vehicle battery and programmable output voltage monitoring.
• 8 line by16 character backlit LCD display with graphics capability.
• Simple keypad with 6 keys for user control. Configurable for right or left-handed use.
• SD/MMC card support for data/calibration storage as well as firmware updates. • Internal temperature monitor.
• 7” x 4” x 1.5” handheld enclosure with rubber boot to withstand 1 meter drop without damage.

The MyCANIC Heavy Duty version is a low-cost electrically isolated vehicle interface that is designed for standalone or pass-thru diagnostics and reprogramming as well as network simulation, bridging and logging functions using the built-in SD card. In addition to two analog inputs and one analog output, the MyCANIC(R) is capable of communicating with up to three dual-wire high-speed CAN/ISO15765 interfaces simultaneously. The MyCANIC includes a professional carrying case, rubber boot for drop protection, USB cable, heavy-duty OBDII cable with restraint straps and dust covers for the SD-Card slot cover and USB connector. This heavy-duty version can be used in an industrial environment. 850USD
