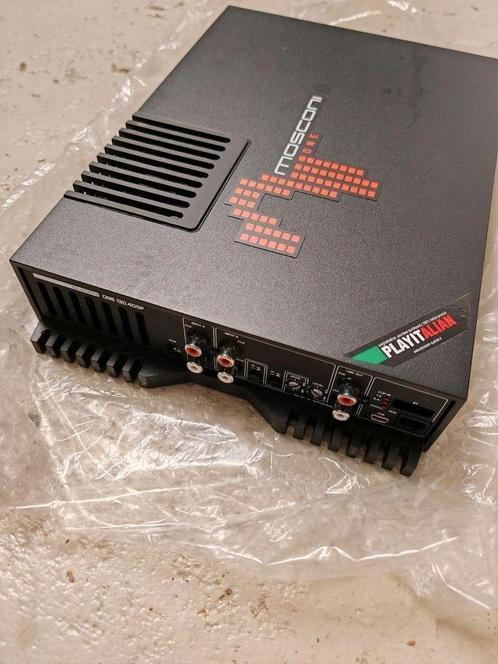

Mosconi 130.4DSP

Mosconi One 130.4 DSP


4 channel amplifier

Integrated 6 channel DSP

Class AB technology

up to 4 x 175 Watts @ 2 Ohm

12 V and 24 V versions



Overview Mosconi One 130.4 DSP

The Mosconi ONE 130.4 is a universal 4 channel high quality power amplifier in Class AB technology and an integrated digital sound processor. It is the ideal power amplifier for speaker systems and/ or medium-sized subwoofers. The digital 6 channel sound processor allows you to adjust your car hifi system perfectly via PC software. In addition to an extensive active crossover, equalizer and a delay correction, various special filters are available. For system expansion, the Mosconi One 130.4 DSP has a processed preamplifier output. Here you can easily connect the "Line IN" of another mono or stereo amplifier.

The One 130.4 DSP is available as a MOLEX version (One 130.4 DSP-M) or with a conventional screw terminal.

Automatic power-on (high level, SE or BTL mode only)

AUX inputs

Auto fading between inputs

Signal mix capability

USB cable for PC connection

BT radio module for PC connection (optional)

GUI (Windows XP and higher, 32 and 64 bit)

Presets: 4

30 bands parametric equalizer

Implemented filter type all standard filters available

HP frequency range for each channel Hz 10 ÷ 20000

LP frequency range for each channel Hz 10 ÷ 20000

Slope of HP and LP filters for each cell dB/Oct 6 to 24 (up to 48 when cascaded)

Bandpass allowed yes

Variable "Q" 0.25 ÷ 40

Time delay ms 0 ÷ 15 (0.02 steps)

Phase inversion for each channel 0 / 180

Gain level for each channel dB - 115.5 ÷ 6

Remote volume control (optional)

24 Volt version available for truck operation

Technical Data Mosconi ONE 130.4 DSP

Output Power:

Output power @ 4Ω:

4 x 130 RMS Watts

Output power @ 2Ω:

4 x 175 Rms Watts

Bridged Output power @ 4Ω:

2 x 350 Rms Watts

Specifications:

Input sensitivity:

0.28 V ÷ 5.7 V (LL) / 0.8 V ÷ 16 V (HL)

Dimensions:

310 x 200 x 50 mm

Weight:

2,7 kg
