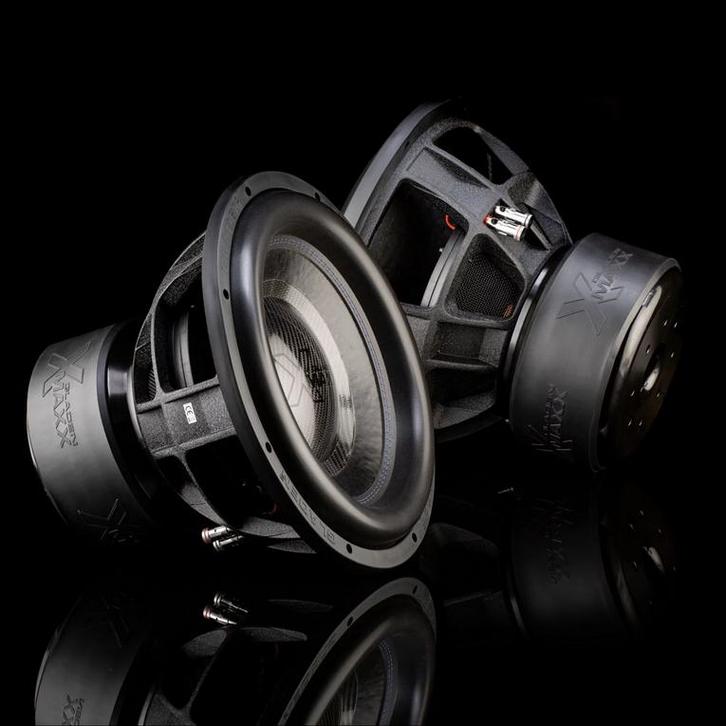

Gladen XMAXX15
15” Subwoofer met 1250 Watt RMS

Overview Gladen X-MAXX 15



Low bass long excursion subwoofer

4" flat wire voice coil, 4 ply, made in USA

4-ply nomex center spider

Carbon fiber dust cap

Paper cone

Extra wide long excursion foam surround

80 mm ferrite magnet system (quad stack)


Gladen XMAXX15
15” (38cm)
Vermogen 1250 Watt RMS
Vermogen 1875 Watt MAX
Impedantie 1 Ohm
Frequentiebereik 32,2 Hz
Spreekspoel 100mm
Frame Aluminium
Conus Papier
Buitendiameter 395mm
Inbouwdiameter 355mm
Inbouwdiepte 276mm

van €849,-
alleen bij lakro kan het €449,-

Material:



Cone:


Paper



Spider:


Nomex



Surround:


Foam



Coil former:


Aluminium



Basket:


Aluminum



Dust Cap:


Carbon
Specifications:



DC resistance (Rdc):


2 x 0,9 Ω



Nominal impedance (ZN):


2 x 1 Ω



Resonance frequency (fs):


32,2 Hz



Voice coil diameter:


100 mm



Mechanical Q factor (Qms):


5,60



Electrical Q factor (Qes):


0,56



Total Q factor (Qts):


0,51



Moving mass (Mms):


464,3 g



Effective piston area (Sd):


830 cm²



Mechanical resistance (Rms):


16,8 kg/s



Compliance (Cms):


0,05 mm/N



Force factor (BL):


17,3 Tm



Equivalent air volume (Vas):


46,4 dm³



Efficiency (η):


0,27 %



SPL 2,83V/1m:


86,2 dB
