ARB - BASE Rack Pre-Wired 3-Circuit Wiring Kit

ARB - BASE Rack Pre-Wired 3-Circuit Wiring Kit

Traditionally wiring for accessories fitted to roof racks has involved wiring going up windscreens, up out of B pillar door gaps and the like. As part of the ARB BASE Rack development ARB’s engineers have developed a wiring solution to neatly get wiring from inside the vehicle through the vehicle or canopy roof.

Two wiring kits have been developed. One kit is pre-wired with 6 wires (3 circuits) preinstalled to ensure sealed wiring. The second kit has provision for 6 wires allowing differing wiring depending on customer requirements.

Key criteria during development included:

• Sealed wiring solution for passing wires through a vehicle roof
• Seamless integration with ARB BASE Rack
• Exit grommets to fit standard 10mm (3/8”) and 13mm (1/2”) OD conduit sizes
• High quality automotive wire to JASO standards (PN 1780400 only)
• Free from liquid adhesives

Fitting of the wiring kits requires 2 x 7mm (0.28”) and 1 x 25mm (1.0”) holes to be drilled in the vehicle or canopy roof. The 25mm hole is suitable for Deutsch DT-02 connectors to pass through. Mount location for popular vehicles has been developed allowing for side curtain airbags and other obstructions where necessary.

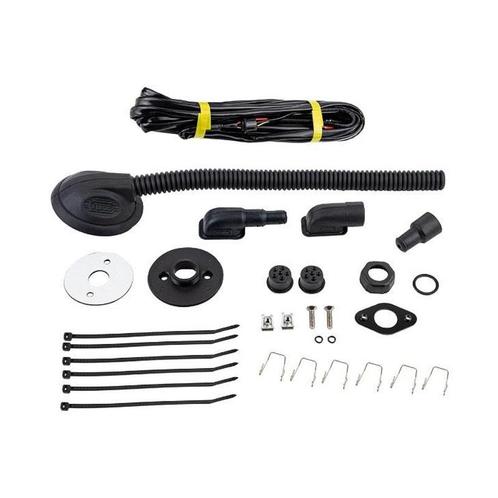

INCLUDES:

• Rubber outer boot with 300mm sheath
• Roof grommet with bonded wires. 4.0m is provided for outside vehicle roof and 2.5m provided for within the vehicle
  - Red and Red/Back 2.0mm² (25A)
  - Green and Green/Black 0.5mm² (11A)
  - Yellow and Yellow/Black 0.5mm² (11A)
• BASE Rack entry grommet
• BASE Rack exit grommet
• Direct exit grommet
• Fasteners
• Cable ties and edge clips
