Autool injectoren reiniging set benzine injectoren garage

Autool injectoren reiniging set benzine injectoren garage gereedschap

Zie de foto’s voor de details

Fabriek specificatie:

Product Description

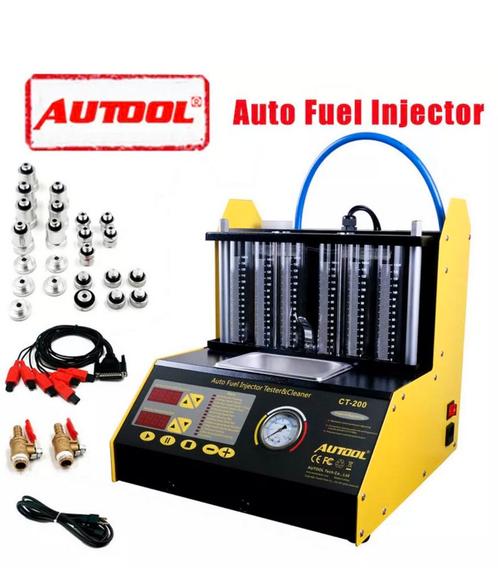

AUTOOL CT200 Petrol Car Motorcycle Injector Ultrasonic Throttle Cleaner Injection Testing

This latest generation ultrasonic injector cleaner. We can cleaning and testing both petrol car and motorcycle injector with this machine.
We can even clean fuel system, throttle valve without disassembly via CT200
It is good at remove carbon from your fuel system, testing leaking ,Uniformity,inbreathe about injectors

Please Note:
1 This one was for 6 cylinder car (It will fit for 4 cylinder after blocking two test tube )

2 The machine work on petrol injector, not for diesel injector

3 Motorcycle injector testing for HONDA YAMAHA SUZUKI SANYANG,
For customization special adapter for your motorcycle, please contact us.

4 Convert cable come with machine, please try to use the convert cable if pulse cable can not match your injector




Main Function:
A Cleanning petrol injector with ultrasonic

B Cleanning spark plug：Put spark plug into cleaning tank ,input clean fluid and begin clean

C Testing injector injection in different situation, check leaking and blocking

D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)

E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)

F Standard config for top feed injector only (side feed injector adapter need extra fee, choose by yourself


The CT200 cleaning machine how to work:
1 Clean injector's outside with gasoline or cleaning liquid before open machine
2 Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3 Turn on ultrasonic system，pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4 Fixed injectors on main machine
5 Testing injectors for resistance, shorts, and current draw
6 Performing leak test, spray pattern, and flow rate testing on flow bench.
7 The injectors are now returned to the flow bench for retesting of all functions.


FEATURES:
1. LED display;
2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4. Equip with high quality SIEMENS pump, make it endurable;
5. Discharging fluid more quickly, add 2 value in front of machine.


Working Condition:
Power supply: AC220V
Frequency: 50HZ±0.5
Humidity: ＜85%
Environment Temperature: 0℃～＋40℃
Magnetic Field: ＜400Ａ/m
Spark and fire is prohibited.


Specifications:
Fuel Tank Capacity: 2000 ml
Capacity of Measuring Cylinder: 125 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
Dimension: 490mmx470mmx485mm
weight: 23KG

Support Model:
Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen,
Dacia,Dadi,Daewoo,Daihatsu,Demo,Fiat,Ford,GM,Holden,
Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,
Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,
Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW,Yamaha


Package include:
1 x CT200 Unit
2 x Valve (for discharging fluid from machine tank)
6 x Adapter for fixing injector on machine
6 x linkage
6 x Blocker for block distributor
1 x Distributor Kits
1 x Impulse cable for providing power to open injector
1 x Manual
