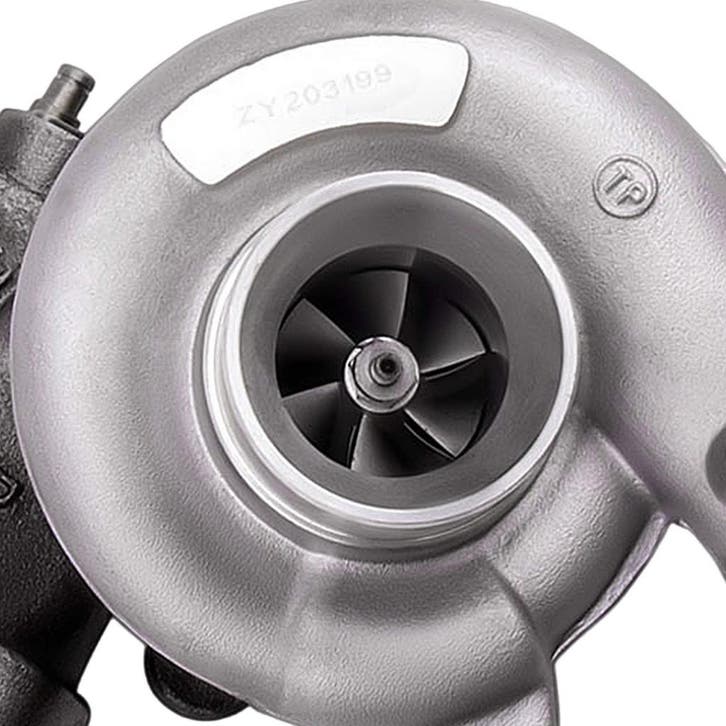

Water Cooled Turbocharger compatible for Mitsubishi L300 Pajero Shogun 4D56T 2.5L TD04-10T 92-96

Introduction

Looking to boost your car's horsepower? Is your car's original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance, and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

Compatible for Mitsubishi Pajero, Shogun:
Compatible for Hyundai Gallopper 2.5 TDI Engine D4BH (4D56 TCI) 1996-
Compatible for Mitsubishi Gallopper TCI Engine D4BH (4D56 TCI) 1996-
Compatible for Mitsubishi L200 2,5L TD 4x4 Engine: 4D56 (Turbo) 1996-1998
Compatible for Mitsubishi Pajero II 2.5L TD 1993-

*Notice:The flange of turbine outlet is 5-bolts,not 3-bolts.
Please be sure to check your engine code is 4D56/D4BH before purchasing.ble for Mitsubishi Pajero III Canvas Top (V6_W, V7_W) 2000-2006

Turbo Part Number & OEM Number

4917702512, 49177-02512,
4917702513, 49177-02513,
4913504020, 49135-04020,
4913504021, 49135-04021,
4917707612, 49177-07612,
282004A200, 28200-4A200,
2820042540, 28200-42540,
MD194845, MR355225,

*This turbo goes with oil and water-cooling bearing housing that would fit original oil-cooled turbo with OE/PN number below, but need to close water hole:
49177-02500, 4917702500,
49177-02501, 4917702501,
49177-02510, 4917702510,
49177-02511, 4917702511,
MD187208, MD170563,
MD187211, MD155984,

Specification

Exhaust Inlet Flange:3 Bolt
Exhaust Outlet Flange:5 Bolt

Turbo Model: TD04-11G-4
Engine Code: 4D56, D4BH
Cooling Type: Water+Oil Cooling
Bearing Type: Floating Bearing
Thrust bearings: 270 Degrees
Horsepower: 73KW/ 98HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:27*24*22cm
Package Weight:5100g
1xTurbocharger
2xFlange gaskets
2xOil/Water port gaskets

Features

* Product Material
1. Turbine housing :Ductile iron QT450-10- temperature resistant up to 700?
2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900?
3. Compressor housing:ZL104 aluminum with lightweight
4. Compressor wheel/blades:Cast aluminium blades - superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Notice

* Please confirm your original turbo PART NUMBER before Purchasing
* The flange of turbine outlet is 5-bolts,not 3-bolts.
* Please be sure to check your engine code is 4D56/D4BH before purchasing.
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
