Lazer Lights - Land Rover Defender (2020+) Roof Kit

Lazer Lights - Land Rover Defender (2020+) Roof Kit

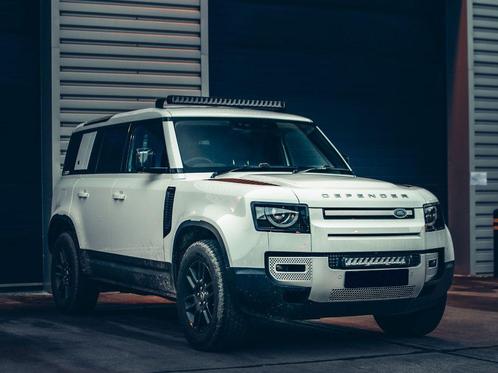

Specifically engineered for the Land Rover Defender (2020+), the Lazer Lamps Roof Mounting Kits, comprises stainless steel brackets that fix to the vehicle’s roof ditch where there is already factory drilled mounting holes and are optimised for either our Linear-42 or Triple-R 24 Elite off-road LED spotlights. Included with the mounting brackets is a length of cable for modifying the relevant Lazer wiring kit to enable connection of your LED light bar without the need to drill any bodywork, for a quick, simple, and tidy finished install.

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, spacers, of varying lengths, are provided to aid positioning.

The installation of the brackets to your vehicle is completed using anti-theft fasteners fixed within the roof ditch location either side of the Defender’s roof. Additional wiring extension and heat-shrink butt connectors are also supplied to help facilitate running the cable from the engine bay, up through the ‘A’ pillar and roof gutter, for a clean and tidy install.

When mounting the ECE Reg112 approved Linear-42 to activate with the vehicle’s high beams, if the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances, it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Please note the Roof Mounting Kits are not compatible with vehicles with panoramic sunroof.

What's included:
- 2x Stainless Steel Mounting Bracket (LH/RH)
- 1x Anti-theft Fastener Set (various sizes)
- 1x Spacer Set (various sizes)
- 4x M6 Anti-Theft Fasteners
- 4x M8 Roof Ditch Spacers
- 1x 50cm wiring extension

Complete one-stop solution for roof-mounting on Land Rover Defender (2020+)

Optimised for either Triple-R 24 Elite or Linear-42 LED driving lights

Completed without the need to drill bodywork

Mounting brackets made from 3mm A2 stainless steel

UV-stable, satin black powder coat

Includes assortment of A2 stainless steel fixings with countersunk head

Spacers facilitate positioning of different length LED light bars

M6 fasteners facilitate mounting brackets to the roof ditch on the vehicle

Manufactured in the UK

Specifications:Linear-42Triple-R 24 Elite (Gen2)Voltage Range10-32V10-32VLED Life50,000 hours50,000 hoursWeight3 kg3.4kgHIGH BEAM FUNCTIONTotal Luminous Flux15750 Lm27060 LmTotal Driver 'FOV' Flux †11214 Lm17833 LmColour Temperature5000k5000kNumber of High Output LEDs4224Power Consumption147 Watts270 WattsCurrent Draw (at 14.4V)10.2 Amps18.75 AmpsStart-up Time *100ms100msCERTIFICATIONHigh BeamECE R112N/AECE Reference50N/APHOTOMETRIC DATAHorizontal Beam Angle34 deg42 deg0.25 lx Line984 metres2352 metres0.5 lx Line696 metres1663 metres1 lx Line492 metres1176 metres3 lx Line284 metres679 metres
