Lazer Lights - Isuzu D-Max Sports Bar Mounting Kit

Lazer Lights - Isuzu D-Max Sports Bar Mounting Kit

For the Isuzu D-Max with Sports Bar, a choice of auxiliary light options fitted to the bar, for a fully road-legal LED lighting upgrade that delivers exceptional levels of night-time visibility, backed up by a comprehensive 5-year warranty.

Optimised for the ST8 Evolution, or range of Triple-R 1000 high performance spotlights, the lights mount in pairs on the sports bar using stainless steel 76mm Tube Clamps, which are powder coated satin black for a sleek, stylish finish to your installation. Vehicle wiring kits are also available allowing for connecting your lights either direct to your standard high beams, and/or operated via a separate switch on your dashboard.

The ST8 Evolution option delivers good distance illumination (1 lux at 555m) but with an all-round spread of light that ensures excellent visibility both left/right and up/down. In this respect, the ST8 is particularly well suited for customers driving in rural or off-road locations. By contrast the Triple-R 1000 (available in Standard or Elite grade) delivers a spot beam with 1 lux reaching 898m or 960m depending the lamp version selected. All options are fully ECE approved for on-road use.

With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

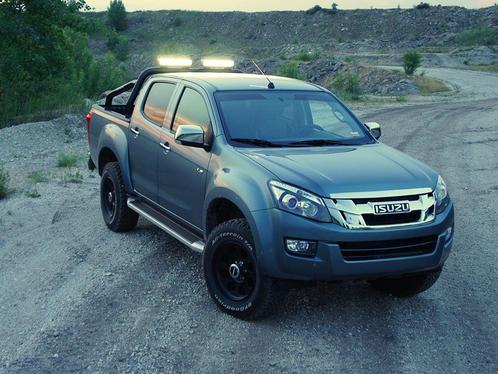

Auxiliary spotlight installation for Isuzu D-Max with Sports Bar

Optimised mounting with pair of ST8 Evolution or Triple-R 1000 spotlights

Secured using satin black, stainless steel 76mm Tube Clamps

Vehicle wiring kits available

Fully road-legal

5-year warranty

Made in Britain

Specifications:Technical Specifications2x Triple-R 1000 Elite
(E-Boost Mode)2x Triple-R 1000
(E-Boost Mode)2x ST8 EvolutionVoltage Range10-32V10-32V10-32VLED Life50,000 hrs50,000 hrs50,000 hrsWeight3.4 kg 3.4 kg2.3kgHIGH BEAM FUNCTIONTotal Luminous Flux20272 Lm18480 Lm16544 LmTotal Driver 'FOV' Flux †13360 Lm11144 Lm9959 LmNumber of High Output LEDs2x 8 LED2x 8 LED2x 8 LEDPower Consumption208 Watts176 Watts192 WattsCurrent Draw (at 14.4V)14.4 Amps12.2 Amps13.4 AmpsCERTIFICATIONHigh BeamECE R112ECE R112ECE R112E-Mark RefN/A
(2x 25 - E-Mark Mode)N/A
(2x 12.5 - E-Mark Mode)17.5Position Light (White only)
N/AECE R7N/APHOTOMETRIC DATAHorizontal Beam Angle42o19o28o0.25 lx Line1920m1732m1111m0.5 lx Line1358m1225m786m1 lx Line960m866m555m3 lx Line554m500m321m
