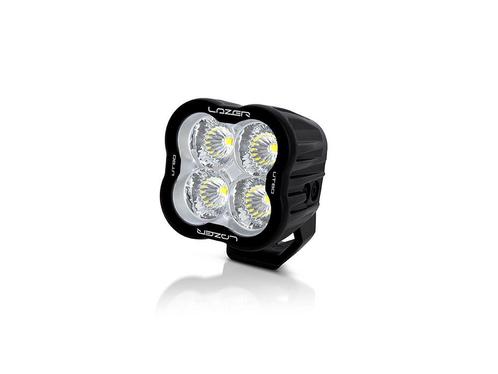

Lazer Lights - Utility 80 HD
Beschrijving
A new addition to the Utility Series product range in 2023, the Utility-80 HD (Heavy-Duty) builds on our reputation for high performance LED work light solutions. The product is specifically designed and engineered for the rigorous demands of industrial applications including: mining, construction, forestry, and agriculture.
Comprising 4x premium-bin 20W LEDs, the Utility-80 HD emits 8,940 raw lumens harnessed through the ultra-reflective, vacuum-metallised optics redesigned for this product to give even better distribution of light over a greater area. For customers looking for flexibility and easy control over the intensity of light, a version of the product with a variable brightness function is available, providing the machine operator the option to increase or decrease the lamps brightness at the touch of a button.
The colour of light for both variants of 80 HD is set at 5000K, carefully selected to improve safety through maximising definition of objects and hazards ahead, while reducing fatigue that can come from using products with a higher colour temperature.
Lighting performance aside, what truly sets the lamps apart is the robust construction and build quality. Like all Lazer products, the light benefits from an electronic thermal management system, CAE optimised heatsink, polycarbonate lens with hardcoat, and advanced electronic design. An upgraded die-cast mounting bracket, repositioned and concealed goretex breather membrane, plus re-engineered LED/optical arrangement only serves to increase the product’s robustness and suitability to the harshest environments. Testimony to the products build quality, the lamp comes with a 5 year functional warranty.
Product features:- ECE approved work light
- Utilising 4 high-density 20W LEDs
- Variable brightness option available
- CAE optimised cooling system with Electronic Thermal Management
- 5000k colour temperature
- Vacuum-metallised optics for superior light utilisation
- Die-cast, heavy-duty mounting bracket made from 7mm stainless steel
- ‘Unbreakable’ polycarbonate lens with hardcoat
- Automotive grade corrosion resistance
- EMC protected- CISPR:25 (Class 3)
- IP68 / IP69k approved
- Over voltage protected
- Reverse polarity protected
- Includes male/female Deutsch connectors
- Comprehensive range of lens covers available
- 5year warranty
- Made in the UK
Based on: 1x Utility-80 HD LED Work Lamp.
Voltage Range (DC)10-32VLED Life50,000 hoursColour Temperature5,000KWeight1.1kgHIGH BEAM FUNCTIONTotal Luminous Flux8940 LmColour Temperature5000KNumber of High Output LEDs4Power Consumption80 WattsCurrent Draw (at 14.4V)5.6 AmpsCERTIFICATIONWork LampECE R10IP RatingIP68 / IP69KSalt Spray TestISO 9227 (2000H)EMC ProtectionCISPR-25 (Class 3)OPERATING CONDITIONSVibration (BS EN 60068)10Hz > 1000Hz, 0.14>20 (m/s²)²/HzOperating Temperature-40deg C ... +90degCDIMENSIONSWidth107mmDepth108mmHeight107mmPHOTOMETRIC DATA1Lx Line @96m5Lx Line @44m20Lx Line @23m50Lx Line @14m*What’s included:
- 1x Utility-80 HD Work Lamp
- 1x Lamp Mount (supplied attached to lamp)
