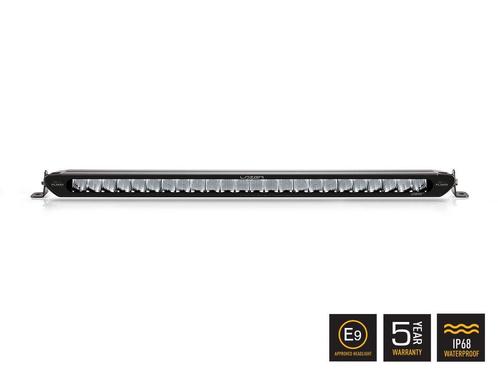

Lazer Lights – Linear-24 Flood

Lazer Lights – Linear-24 Flood

Designed and engineered specifically for industrial sectors, the Linear-24 Flood challenges conventional work light solutions, offering outstanding lighting performance optimised for heavy machinery. Like all Lazer products built in the UK, the light boasts exceptional durability and reliability, even in the harshest environments, alongside high operational safety.

Adopting the same high-output LED arrangement as found in our Linear Elite range, the Linear-24 Flood produces 16,200 raw lumen, and which combined with a customised assembly of ultra-reflective, vacuum-metallised optics, delivers ‘zonal’ lighting perfectly aligned to work cabs, whether mining or construction, forestry or agriculture. On the one hand the high intensity lighting provides a simply unmatched level of illumination in the immediate area in front of the cab, while the length of the light bar itself enables a spread of light to the sides which makes for a safer and more productive work environment. At 5000 kelvin, the colour temperature of the light is also proven to improve sharpness and definition of the immediate surroundings, while also being comfortable to operate with for longer periods of time.

Superior lighting performance aside, the Linear-24 Flood offers a number of other benefits over more traditional work light solutions. With a power consumption rating of 168W, the lamp provides for a more straightforward installation than multiple smaller lamps, to achieve a similar level of light output (the lamp utilises 2-pin Deutsch connector). Reduced fitting time is one immediate advantage, alongside reduced ongoing maintenance time and cost. Fitting a single, low-profile light bar also has the benefit of being less susceptible to misalignment or getting damaged.

From a durability and build quality perspective, the Linear-24 Flood comes with a 2 year warranty (5 year for Automotive or Commercial Fleet applications). The polycarbonate lens with hardcoat lacquer has a lifetime guarantee, while Dynamic Drive Modulation optimises the light output considering environmental and thermal conditions, to preserve the longevity of the LEDs over a longer lifespan. Manufactured in the UK, and extensively tested, this is a product to be trusted year-after-year.

Product features:

• High output work light for industrial applications.
• Utilises the latest, highly efficient LED technology.
• Customised arrangement of vacuum-metallised optics delivers ‘zonal’ lighting.
• Light output optimised for exceptional levels of illumination in immediate (<20m) working environment.
• Colour temperature - 5000 kelvin.
• Supplied with stainless steel, side mounting brackets.
• Electronic thermal management
• ‘Unbreakable’ polycarbonate lens
• IP68 watertight
• 2 year warranty (5 year for Automotive/Commercial Fleet applications)
• Supplied with male/female 2-pin Deutsch connectors
• Designed & manufactured in Britain

Technical specifications:Voltage Range (DC)10-32VLED Life50,000 hoursColour Temperature5,000 KelvinWeight1500 grHIGH BEAM FUNCTIONTotal Luminous Flux16200 LmTotal Driver 'FOV' Flux †11534 LmColour Temperature5000KNumber of High Output LEDs48Power Consumption168 WattsCurrent Draw (at 14.4V)11.7 AmpsCERTIFICATIONWork LampECE R10IP RatingIP67 / IP69KSalt Spray TestISO 9227 (250H)EMC ProtectionCISPR-25: 2008 (Class 3)OPERATING CONDITIONSShockTBCVibration (BS EN 60068)10Hz-2000Hz, 10gnOperating Temperature-40deg C ... +90degCDIMENSIONSWidth682 mmDepth62 mmHeight40 mmPHOTOMETRIC DATA1Lx Line @44m5Lx Line @33m20Lx Line @23m50Lx Line @18m*

What's included:

• x1 Linear-24 Flood
• x1 Anti-Theft Side Mount (1127K)
