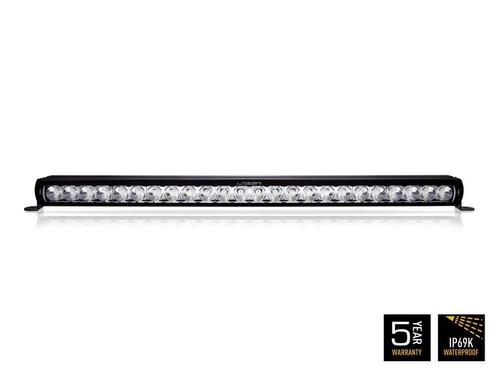

Lazer Lights – T24 Evolution

Lazer Lights – T24 Evolution

The ST / T Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28, these are LED light bars benefitting from huge versatility, having been adopted across a wide range of different applications and vehicle types, since the products were first launched in 2010. Since then, the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary, seamless, low profile design making them easier to install, more resistant to dirt, snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles.

Superior lighting performance is delivered by the high power 11W LEDs, alongside advanced electronic design, combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products, the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings.

Performance aside, the ST / T Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed, engineered and manufactured in-house, in the UK, there’s no compromise when it comes to build quality, ensuring the lights perform as well as they look and function for years to come.

Product features:

• High density, premium ‘bin’ 11W LED technology
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
• Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.
• Includes versatile ‘Centre Mount’ mounting system plus side mounting brackets
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• IP68 watertight
• 5 year warranty
• Supplied with pre-wired male/female 2-pin deutsch connectors
• Designed and manufactured in UK

Technical specifications:

Based on: 1x T24 Evolution.

Voltage Range (DC)10-32VLED Life50,000 hoursWeight3084 grHIGH BEAM FUNCTIONTotal Luminous Flux24816 LmTotal Driver 'FOV' Flux †14939 LmColour Temperature5000KNumber of High Output LEDs24Power Consumption262 WattsCurrent Draw (at 14.4V)18.2 AmpsCERTIFICATIONHigh BeamNot certifiedDIMENSIONSWidth1004 mmDepth68 mmHeight64 mmPHOTOMETRIC DATAHorizontal Beam Angle40°0.25 lx Line1361 metres0.5 lx Line962 metres1 lx Line680 metres3 lx Line393 metres

What’s included:

• x1 T24 Evolution LED Spotlight
• x3 Centre Mount (1114K)
• x1 Side Mount Kit (1118K-B)
• x1 One-Lamp Wiring Harness (1L-HP-300)
• x1 Installation Instructions
