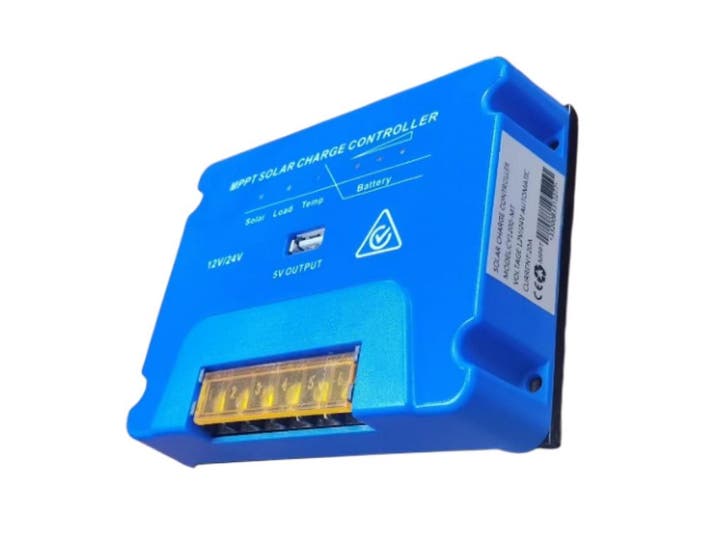

MPPT Laadstroomregelaar 12/24 volt 10Ah – 12 VSpecification:MPPT,LCD display,RS485,12/24V system voltage * Innovative MPPT technology,tracking efficiency 99.9%,conversion efficiency up to 97% * Real-time display the operational data and working status of the controller in digital,graphic and textual forms by a large LCD * AGM,Gel,Liquid battery to choose * Two navigation buttons,easy to implement various operations * 12V/24V automatic,recognition,Temperature compensation,Perfect EMC design * Four stage charge way:MPPT,boost,equalization,float * Full automatic electronic protect functionSpecification: MT1050EUBattery ParametersSystem voltage12VMax charging current10AMPPT charging voltage<14.5V@25Boost voltage14.5V@25Equal voltage14.8V@25Float voltage13.7@25Low voltage disconnect10.8~11.8V;SOC1~5Low voltage reconnect11.6~12.8VOver charge protect15.5VMax battery voltage20VTemp copensation-4.17mV/K per cell(Boost,Equal),-3.33mV/K per cell(Float)Battery typeAGM,Liquid,GELPanel ParametersMax solar voltage45VMax input power130WDusk/Dawn detect volt.8.0VMPPT tracking range(Battery Voltage+1.0V)~Voc*0.9*LoadOutput current10AUSB interface5V,2AWork modeStandard,D2D,Street lamp,User-defined modeSystem ParametersMax tracking efficiency>99.9%Max charge conversion96.5%Dimensions(mm)189*96*53Weight480gSelf consumption7mAAmbient temperature-20~+55Storage temperature-25~+80Ambient humidity0~100%RHProtection degreeIP32Max altitude4000mTechnische specificaties * Capaciteit: 10 ah * Model / type: mppt10 * Producttype: Laadregelaar * Spanning: 12 V * Technologie: Mppt * Afmetingen (L × B × H): 10 × 11,3 × 40 cm * Gewicht: 0,5 kg
