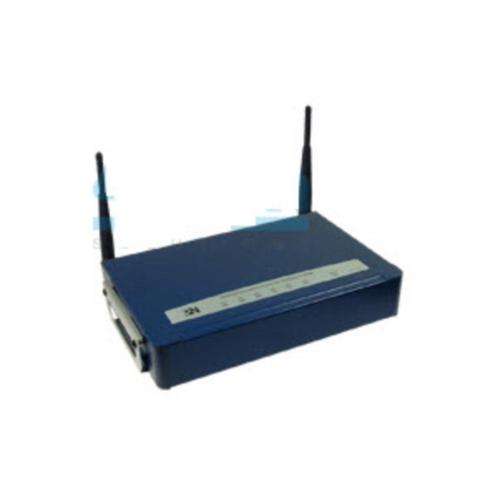

PheeNet WAS-102R Indoor WiFi Access Point

Wifi / Wireless HotSpot Gateway / Network Access Control Gateway for user management (Authentication, Authorization, Accounting), 1 WAN + 2 Public LAN + 2 Private LAN + 11g High Power AP
WAS-102R is an all-in-one / cost-effective Hot Spot in a box, which integrates 3A to Hot Spot venues can generate user accounts for a fee-based or free broadband Internet Access; Hot Spot solution specially designed for a public wireless network. It integrates Access Control and high-Speed secure Wifi / wireless connection into one system to fulfill the needs in a Hot Spot.
WAS-102R is not only a high performance wireless AAA gateway but also a powerful firewall with Denial of Service (DOS) protection. It supports 802.11g 54Mbps high-speed connection and is compatible with 802.11b standard. By connecting to more Wireless access points a Hot Spot can be easily extended with this flexible and scalable solution.
With our WAS-102R, it provides additional sources of revenues for a better Return on Investment (ROI). Your business or organization can provide customers or guests wireless Internet connection with zero configuration and bandwidth management while protecting your private network.
Features

• Built-in user database provide sufficient account capacity for different operation scenarios
• Works with instant account generator to provide user accounts for visitor-based, on-demand operations
• Secure guest and administrator access using web-based login and administration over SSL
• Standards-based encryption capabilities ensure privacy to users device
• Integrated user authentication: WEP, WPA, IEEE 802.1x
• Integrated access point enables Wi-Fi access and eliminates the need for additional device
• Complete authentication mechanism blocks unauthenticated users from access to the network
• Role-based and policy-based control policies enhances the protection against malicious users
• Configurable packet filtering policies enhance data traffic security
• Allows session expiration control for guest or on-demand users by time and data volume
• Programmable billing profiles allow operators to customize the billing plans for on-demand users
• Bandwidth control enables class of service for different levels of users and maximize profits
• Detailed per-user traffic history log for analysis and record keeping
• Supports various broadband options (T1, DSL, Cable) via static IP, DHCP and PPPoE
• Billing report gives a summary of transaction records for on-demand users
• Paypal billing system, credit card and multiple billing plans for Internet access Specification

Industrial Standard
Standard

• IEEE 802.11b / 802.11g Compliant
• IEEE802.3 10BaseT Ethernet
• IEEE802.3u 100BaseTX Fast Ethernet

Interface

• WAN:1×10/100Base-TX Ethernet port
• LAN: 2 Private LAN Port, 2 Public LAN Port
• 1×RJ-11 Port (For Ticket Printer)

Security for Wireless

• 64/128 bit WEP Encryption
• IEEE802.1x Client(EAP-ALS, EAP, MD5 supplicant)
• WPA (TKIP, Pre-Share Key)

RF
Frequency Band
2.400~2.484 GHz ISM band
Signal Type
DSSS & OFDM
Modulation
DSSS(DBPSK,DQPSK, CCK), OFDM(64-QAM,16-QAM,QPSK,BPSK)
Antenna
Diversity Antenna with 2dBi
Sensitivity

• -91dBm @1Mbps, -84dBm @ 6Mbps,
• -75dBm @24Mbps,-90dBm @ 2Mbps,
• -82dBm @9Mbps,-73dBm @ 36Mbps,
• -89dBm @5.5Mbps,-79dBm @ 12Mbps,
• -70dBm @48Mbps,-87dBm @ 11Mbps,
• -77dBm @18Mbps,-68dBm @ 54Mbps,

Output Power
20dBm (100mW) /23dBm (200mW)
Channel

• FCC: 11 Channels (US, Canada)
• ETSI: 13 Channels (Europe)
• TELEC: 14 Channels (Japan)

Software
User Management

• Supports up to 50 concurrent users
• Supports 500 local accounts
• Supports 2,000 on-demand accounts
• Provides guest accounts
• Simultaneous support for multiple authentication methods (Local and On-demand accounts, POP3(S), LDAP, RADIUS, NT Domain server)
• Role-based and policy-based access control
• (per-role assignments based on Firewall Policies, Routing, Login Schedule, Bandwidth, Quota, and Session Time)
• User Session Management:

(a) SSL protected login portal page
(b) Supports multiple logins with one single account
(c) Session idle timer
(d) Session/account expiration control
(e) Friendly notification email to provide a quick hyperlink to login portal page
(f) Windows domain single sign on
(g)Configurable login time frame
Security

• Supports data encryption: WEP(64/128-bit), WPA
• Supports authentication: WPA-PSK, IEEE 802.1x
• (EAP-MD5, EAP-TLS, CHAP, PEAP)
• Supports packet filtering policy
• Supports VPN Pass-Through (IPSec and PPTP)
• Supports DoS attack protection
• Supports SSH Remote Management
• Supports Layer 2 isolation
• Supports MAC Access Control List
• Configurable user Black List
• Allows MAC address and user identity binding for
• local user authentication

System Administration

• Multi-lingual, web-based management UI
• Customizable login and logout portal page
• Supports SNMP v2
• Remote firmware upgrade
• Supports NTP time synchronization
• Console CLI support
• Backup and restore of system configuration

Networking

• Wi-Fi standard: IEEE 802.11b/g
• Supports Router, NAT mode
• Supports Static IP, DHCP, PPPoE, DDNS, PPTP Dial-up
• Configurable LAN ports authentication
• Supports IP Plug and Play (IP PnP)
• Supports Inter-subnet roaming
• Built-in DHCP Server and supports DHCP relay
• Supports NAT:

(a) IP/Port Destination Redirection
(b) DMZ Server Mapping
(c) Virtual Server Mapping
(d) H.323 Pass-Through

• Configurable static route
• Supports Walled Garden (free surfing zone)
• Supports MAC Address Pass-Through
• Supports HTTP Proxy
• Throughput: 90 Mbps

Accounting and Billing

• Provides built-in billing profiles for on-demand accounts
• Enables session expiration control for on-demand accounts by time (hour) and data volume (MB)
• Provides billing report on screen for on-demand accounts
• Detailed per-user traffic history based on time and data volume for both local and on-demand accounts
• Provides traffic history report in an automatic email to administrator

Hardware
Hardware Platform

• CPU : IXP420 266MHz
• RAM : 64Mb
• Flash : 32Mb

Environment

• Operating Temperature:5~45°C
• Storage Temperature:-20~70°C
• Humidity: 5% ~ 95% non-condensing

Power Supply
12VDC
LED Indicators
Power, WAN Link, LAN LAN/ACT & COL/FDX
Dimensions
248(L) X 149(W) x 47(H) mm
Certificate
FCC, CE
Inclusief PSU en Antennes
