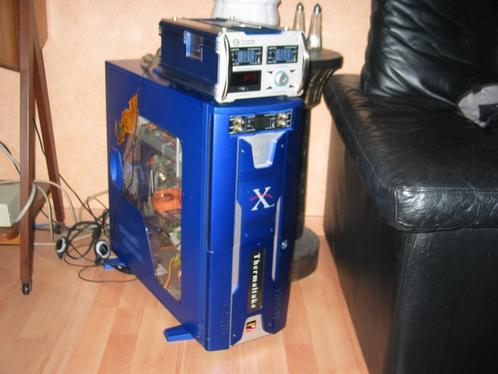

GameSysteem Thermaltake Xaser III & Aquarius III (gepimt)

Deze waterkoeling heb ik zelf gepimpt door middel van het plaatsen van peltiers modules waardoor deze regelbaar is tot het vriespunt en verbeterde LED verlichting. Welke koelblokken ik er bij heb moet ik nog even opzoeken thuis.

Eventueel met 24" LED-beeldscherm

Totaal 8 beeldscherm aansluitingen
3x HDMI
2x Distplay poort
2x DVI
1x VGA

Hardware:
Asus z170 pro gaming motherboard
Asus ROG-STRIX-GTX1060-O6G-GAMING GPU
4x 8GB cosair Dominator 3200 DDR4 mem
Intel core i5 6600K CPU 3,9Ghz maar draait stabiel op 4,8 Ghz
M2. Nve 256GB for systeem
Sata3 500 GB HDD voor Data

ThermalTake Xaser III V1000D Kast

Zelf aangepast
Led strips met controller buttons aan de buiten kant gebouwd + Display in gebouwd voor temp, FAN en HDD activity
2 FANS voor en 2 achter 1 boven en een in de deur. Aantal zijn verlicht.

To survive in the computer case market manufacturers must offer their consumers
many features and options. These include cooling, special features, build, and
aesthetics. Some manufacturers concentrate on only one of these qualities while
others provide a mix. Can a manufacturer produce a PC case that offers a buyer
a lot of features or will the entire design suffer? Thermaltake is one such
manufacturer and their PC cases offer many qualities but have they bitten off
more than they can chew?


Specifications
• Dimension: 205x535x565 (W,H,D).
• Drive bays: 4×5.25″, 2×3.5″, 6×3.5″ internal.
• Fan: 7x 80mm silent fans included.
• M/B type: ATX & Pentium 4. (MAX SIZE: 12″x13″).
• Ports: 1xIEEE1394, 2xUSB 2.0, 1xSpeaker, 1xMic
Product Features
• Windowed side panel, lockable.
• Lockable drive door
• Lockable aluminum front bezel can be opened.
• Hardcano 9 fanbus unit.
• Front ‘Thermaltake’ LED.
• Removable exterior 3.5″ cage.
• HDD cage mounted in alternate direction.
• Completely tool-less drive rails.
• Side panels attached with thumbscrews.
• Tool-less PCI supports.
• Interior fan door and fan brackets.
• Adjustable feet.


Thermaltake Aquarius III A1681

Universal 4 in 1 solution, compatible with Intel LGA775. P4 and AMD K7, K8(Included AMD Sempron Series )
Extruded aluminum housing
All in one cooling system: easy to install
Universal waterblock :For Intel P4, AMD K7 & K8
All power combine with PC PSU
Integrate power connector and water safety valves on PCI brace
Multi-function Panel: include Water & CPU temp.monitor and fan speed monitor and controller
Foot stand stackable design-let External Liquid Cooling System stack up easily
Thumb screws design,let fill water easily
Application for 1U,2U,Mini case and PC

System Power Input Combine with PC PSU
Compatibility For Intel P4,AMD K7&K8
Cooling Power For 200W thermal design power
Surface Material Aluminum
Cooling System 8032Fan, 2 Ball bearing
Fan Dimension:80x80x32 mm
Heat sink Dimension: 82x65.6x49
mm(66 fins)
Fan Speed:2000 -5500
Noise:21 dBA at 2000 RPM
48 dBA at 5500 RPM

Dimension D312*W191*H135 mm
Net Weight 4.3 kg

Waterblock
Material:copper
Dimension:65x55x15.5mm
weight:0.54 kg
Tube
Material: silicon
Length:1500 mm
Spring inside

Color Blue
Power cable Length:1500 mm
System Power consumption 3.5-7.7 W
Front Panel CPU temp. monitor:
blue back light,alarm function with red back light,record and adjustable pre- setting Temp., C/F display switch
Water temp.monitor:
the same as above
Fan speed monitor:
detect the fan speed
Fan speed controller:
From2000 rpm- 5500 rpm
