PCI FireWire kaart € 10,00
Motu 828mk2 audio interface
834sinds 17 jul. '25, 22:46
Gereserveerd
Ophalen of Verzenden
Afhaalpunt voor € 4,95 of thuis voor € 5,95
Thuisbezorgd via PostNL voor € 6,95
Kenmerken
ConditieGebruikt
MerkMotu
TypeExtern
Beschrijving

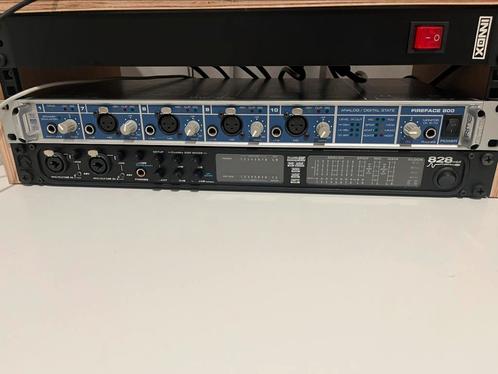

Te koop motu 828 mk2 FireWire interface. 8in/8uit/midi. Gaat weg wegens aanschaf rme fireface. Altijd binnen in de rookvrije studio gestaan. Ook prima te gebruiken als extra adat uitbreiding. 8 extra inputs via adat. Een goed bod wordt ook gewaardeerd.
Zie onder voor de specs:
Technical Specifications
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/instr inputs 2 x XLR/TRS "combo" jacks Individual -20 dB pad and 48V phantom power Preamp gain: +74 dB in 1 dB increments 1 MΩ impedance on the line/instr inputs Independent balanced send/return inserts
Analog inputs 8 x 1/4-inch TRS line in (balanced/unbalanced) 2 x 1/4-inch insert returns function as balanced TRS line inputs (with no mic inputs connected) Max level: +21 dBu +20 dB digital gain on each input
Analog outputs 8 x 1/4-inch TRS line out (balanced, DC coupled) 2 x male XLR out Max level: +21 dBu 2 x 1/4-inch TRS stereo headphone (see below) 2 x 1/4-inch TRS sends (balanced, pre-converter)
Digital I/O 2 banks (16 ch) of ADAT optical I/O at 1x sample rates 2 banks (8 ch) of S/MUX optical I/O at 2x sample rates Bank A switchable to stereo TOSLink I/O (optical S/PDIF) 1 x stereo S/PDIF I/O on RCA (up to 96 kHz)
Total audio I/O 28 in / 32 out (60 total channels) at 1x sample rates 20 in / 24 out (44 total channels) at 2x sample rates 10 in / 14 out (24 total channels) at 4x sample rates
MIDI I/O 1 x MIDI In 1 x MIDI Out/Thru 16 MIDI channels to/from computer host
Headphone 2 x 1/4-inch TRS stereo headphones Output impedance: <1Ω Max output: 14.4 dBu
Phantom power 2 x individual +48V
Foot Switch 1 x 1/4-inch foot switch input Mapping: pedal up/down to any host keystrokes
Sync I/O 1 x BNC Word Clock In 1 x BNC Word Clock Out/Thru Sample rates: all (from 44.1 to 192 kHz)
Front panel 2 x XLR/TRS combo inputs 2 x 1/4" TRS headphone outputs 2 x potentiometer • headphone volume 2 x potentiometer • mic/instr input gain 1 x potentiometer • menu navigation 1 x large potentiometer • main volume 12 x switches • (2) 48V, (2) pad, (6) control room, (2) nav 1 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT display 1 x latching power button
Power Internal 100-240V autoswitching supply 50-60 Hz • 0.5A max
Dimensions and weight (width x depth x height, enclosure only) 19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm 11 lbs / 5 kgs
Zie onder voor de specs:
Technical Specifications
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/instr inputs 2 x XLR/TRS "combo" jacks Individual -20 dB pad and 48V phantom power Preamp gain: +74 dB in 1 dB increments 1 MΩ impedance on the line/instr inputs Independent balanced send/return inserts
Analog inputs 8 x 1/4-inch TRS line in (balanced/unbalanced) 2 x 1/4-inch insert returns function as balanced TRS line inputs (with no mic inputs connected) Max level: +21 dBu +20 dB digital gain on each input
Analog outputs 8 x 1/4-inch TRS line out (balanced, DC coupled) 2 x male XLR out Max level: +21 dBu 2 x 1/4-inch TRS stereo headphone (see below) 2 x 1/4-inch TRS sends (balanced, pre-converter)
Digital I/O 2 banks (16 ch) of ADAT optical I/O at 1x sample rates 2 banks (8 ch) of S/MUX optical I/O at 2x sample rates Bank A switchable to stereo TOSLink I/O (optical S/PDIF) 1 x stereo S/PDIF I/O on RCA (up to 96 kHz)
Total audio I/O 28 in / 32 out (60 total channels) at 1x sample rates 20 in / 24 out (44 total channels) at 2x sample rates 10 in / 14 out (24 total channels) at 4x sample rates
MIDI I/O 1 x MIDI In 1 x MIDI Out/Thru 16 MIDI channels to/from computer host
Headphone 2 x 1/4-inch TRS stereo headphones Output impedance: <1Ω Max output: 14.4 dBu
Phantom power 2 x individual +48V
Foot Switch 1 x 1/4-inch foot switch input Mapping: pedal up/down to any host keystrokes
Sync I/O 1 x BNC Word Clock In 1 x BNC Word Clock Out/Thru Sample rates: all (from 44.1 to 192 kHz)
Front panel 2 x XLR/TRS combo inputs 2 x 1/4" TRS headphone outputs 2 x potentiometer • headphone volume 2 x potentiometer • mic/instr input gain 1 x potentiometer • menu navigation 1 x large potentiometer • main volume 12 x switches • (2) 48V, (2) pad, (6) control room, (2) nav 1 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT display 1 x latching power button
Power Internal 100-240V autoswitching supply 50-60 Hz • 0.5A max
Dimensions and weight (width x depth x height, enclosure only) 19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm 11 lbs / 5 kgs
