Zebra Z4M Thermal Barcode Label Printer 203Dpi - Parallel...

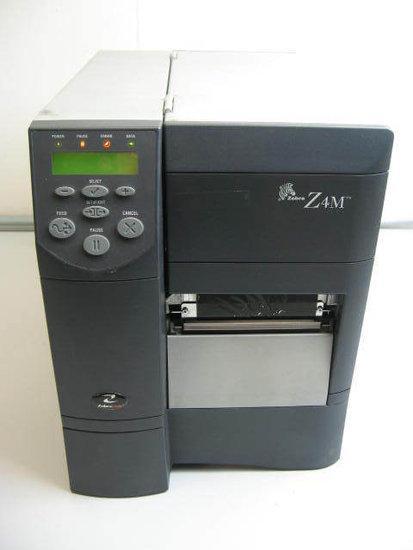

ZEBRA Z4M Barcode - Label printer

Direct Thermische of Thermisch Transfer
Toepassing: Barcodes - Labels - Sticker
Conditie: Occasion
Aansluiting: Parallel / Serieel
Maximale Media Breedte: 10,4 cm
Resolutie: 203Dpi

Inclusief:
Windows Drivers
Zebra Designer Software
Parallel Printer Kabel

Standard Features

Print methods: Thermal transfer or direct thermal ZebraLink (requires PSII to unleash Webview and Alert) 32 bit processor Transmissive/reflective media sensor Metal media cover with large clear window Auto-calibration Auto-detectable power supply Color-coded operator cues Back-lit LCD control panel Std RS-232 serial and bi-directional parallel interface Zebra's E3® Printhead Energy Control
Resolutions
Standard 203dpi (8 dots/mm)
Optional 300dpi (12 dots/mm)


Maximum Print Speeds
10" (254mm/sec) (203dpi) 6" (152mm/sec) (300 dpi)
Memory
Standard 4MB DRAM (2MB User available)
Programming Language

ZPL and ZPL II: Universal language for Zebra printers. Simplifies label formatting and enables
compatibility with other Zebra printers
ZBI-Controls and interprets text and data from
peripherals and non-ZPL printer programming
languages. Transmits captured data over LAN, WAN,
or wireless network via e-mail or TCP/IP messaging

Physical Characteristics
Width:10.93"/278mm
Depth: 18.69"/475mm
Height: 13.32"/338mm
Weight (without packaging):32.4lbs/15kg

Operating Characteristics
Environment
Operating Environment 41°F/5°C to 104°F/40°C
Storage Environment -40°F/-40°C to 140°F/60°C
Operating Humidity 20-85% non-condensing
Storage Humididty 5-85% non-condensing

Electrical
Universal auto-detectable (PFC-compliant) power
supply 90-265 VAC; 48-62 Hz; 5A fused
Communication Interface Capabilities
RS-232C/422/485 serial port
Bi-directional IEEE 1284 parallel port
Embedded ZebraLink Webview and Alert features (require optional ZebraNet PrintServer II)

Agency Approvals

UL 1950; CISPR 22 (Class B); IEC 950; 801-2, -3 and -4
standards; Canadian Doc. (Class A); FCC (Class B); CE
compliance
Media Characteristics
Media Specifications
Label and liner width: 1"/25.4mm to 4.5"/114mm
Ribbon width: 2"/51mm to 4.33"/110mm
Maximum Print Area
Width: 4.09"/104mm
Length with 203dpi:106"/2,692mm (with standard memory)
Length with 300dpi (optional):65"/1,651mm (with standard memory)

Max. Roll Size
8"/203mm O.D. on a 3"/76mm I.D. core

Thickness (label & liner)
.0023"/.058mm to .01"/.25mm
Media Types
Continuous or fanfold, die-cut, notched, tag stock, black mark, perforated
Ribbon Specifications
Max. Roll Size
3.2"/81.3mm O.D. on a 1"/25.4mm I.D. core

Standard Lengths
1476'/450m; provides 3:1 media roll to ribbon ratios

Ribbon Set-up
Ribbon wound ink side out
Ribbon is recommended to be at least as wide as media.
Fonts/Graphics/Symbologies
Fonts and Character Sets

Standard Fonts: 9 bitmapped, 1 smooth scalable
(CG Triumvirate™ Bold Condensed)

Sets: IBM®Code Page 850 International character set
Optional European and Asian font sets
Supports user-defined fonts and graphics-including
custom logos

ZPL II drawing commands-including boxes and lines
