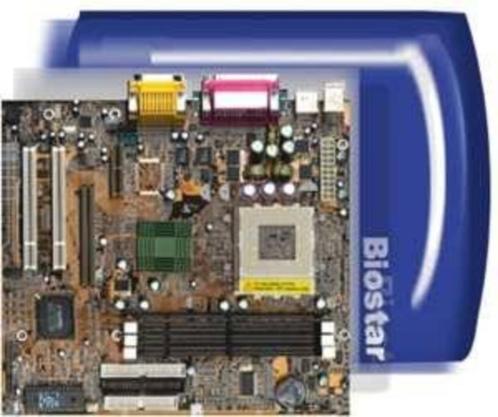

Moederbord Biostar M7VKA; lekker klein [mobo019]

PROCESSOR

• AMD Socket-A Athlon™ / Duron™ processor
• 200MHz Front Side Bus.

CHIPSET

• VIA KT133/686A

SPEED

• Support 33 MHz PCI Bus speed.
• Support 4X AGP Bus.

DRAM Memory

• Supports 8/16/32/64....MB DIMM module socket.
• Supports Synchronous DRAM (3.3V).
• Support a maximum memory size of 768MB with SDRAM.

BUS SLOTS

• 2-PCI slots
• 1-AGP slot
• 1-AMR slot

IDE Built-in On Board

• Supports four IDE hard disk drives.
• Supports PIO Mode 4, Master Mode, high performance hard disk drives.
• Support Ultra DMA 33, 66 Bus Master Mode.
• Supports IDE interface with CD-ROM.
• Supports high capacity hard disk drives.
• Support LBA mode.

I/O

• Supports one multi-mode Parallel Port .

(1) Standard & Bidirection Parallel Port.
(2) Enhanced Parallel Port (EPP).
(3) Extended Capabilities Port (ECP).

• Supports two serial ports, 16550 UART.
• Supports one Infrared transmission (IR).
• Supports PS/2 mouse and PS/2 keyboard.
• Supports 360KB, 720KB, 1.2MB, 1.44MB, and
• 2.88MB floppy disk drivers.

PCI-Base AC97 Digital Audio Processor (optional)

• AC97 2.1 interface
• 16 channels of high-quality sample rate conversion.
• 16x8 channel digital mixer.
• Stereo 10 band graphic equalizer.
• Sound Blaster® and Sound Blaster Pro® emulation.
• S/PDIF output (allows standard interface to consumer electronics)
• 64-voice wavetable
• PC99 compliant and WHQL certified.

Size

• Micro ATX form factor
• 24.0 cm X 22.5 cm (W x L)

Optional

• Creative 5880 Sound
