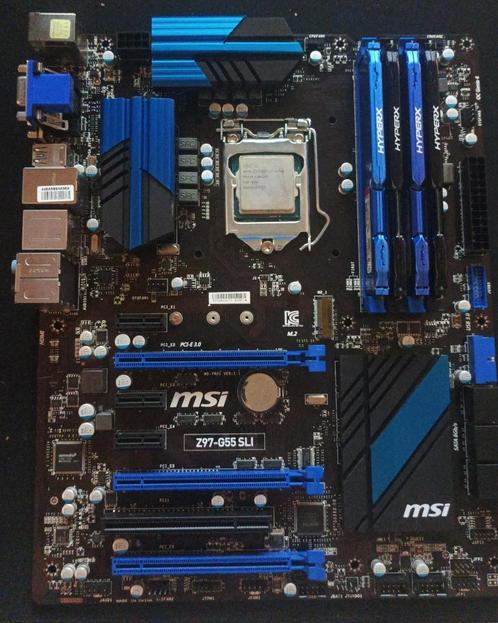

MSI Z97-G55 SLI - i7-4790k - 32GB ram

Betreft een Z97-G55 SLI moederbord.
Inclusief een i7-4790k (4 cores, 8 threads).
32GB ram HyperX 1600mhz (4x8GB).

Moederbord werkt nog uitstekend.

Heeft een m.2 slot!

Origineel IO shield (achterplaat) aanwezig.


Moederbord specificaties:

CPU

• Supports 4th and 5th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1150
Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

• Intel® Z97 Express Chipset


Main Memory

• Support four DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*/3100*/3200*/3300*(*OC) MHz, up to 32GB Max.
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)


Slots

• 3 x PCIe 3.0 x16 slot (support x16, x8/x8, x8/x4/x4 modes)
• 3 x PCIe 2.0 x1 slots(PCI_E1, PCI_E3, PCI_E4)*
• 1 x PCI slot

• The PCI_E3 slot will be unavailable when the PCI_E4 slot has been installed.

Onboard Graphics

• 1 x HDMI™ port, supporting a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x VGA port, supporting a maximum resolution of 1920x1200@60Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz


Multi-GPU Support

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology*

• Supports Windows 7 and Windows 8/ 8.1

On-Board SATA

• Intel® Z97 Express Chipset

- 6 x SATA 6Gb/s ports (SATA1~6)
- 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen2 x2 & SATA mode*
- M.2 port supports M.2 SATA 6Gb/s module
- M.2 port supports M.2 PCIe module up to 10Gb/s speed
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- Supports RAID 0, RAID1, RAID 5 and RAID 10*
- Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology

• The SATA5 and SATA6 ports will be unavailable when installing a module in the M.2 port.

M.2 PCIe interface only supports UEFI option ROM, NOT support legacy option ROM.
M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.

• * Supports Intel® Core processors on Windows 7 and Windows 8/ 8.1

USB

• Intel® Z97 Express Chipset
- 4 x USB 3.0 ports available through the internal USB 3.0 connectors
- 8 x USB 2.0 ports (2 ports on the back panel, 6 ports available through the internal USB 2.0 connectors)

• ASMedia ASM1074 Chipset
- 4 x USB 3.0 ports on the back panel

• ASMedia ASM1042 Chipset
- 2 x USB 3.0 ports on the back panel




Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio


LAN

• 1 x Realtek® 8111G Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x M.2 port
- 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
- 2 x USB 3.0 connector (supports additional 4 USB 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper


Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 ports
- 6 x USB 3.0 ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 6 x audio jacks


This platform supports dual-display and triple-display function
