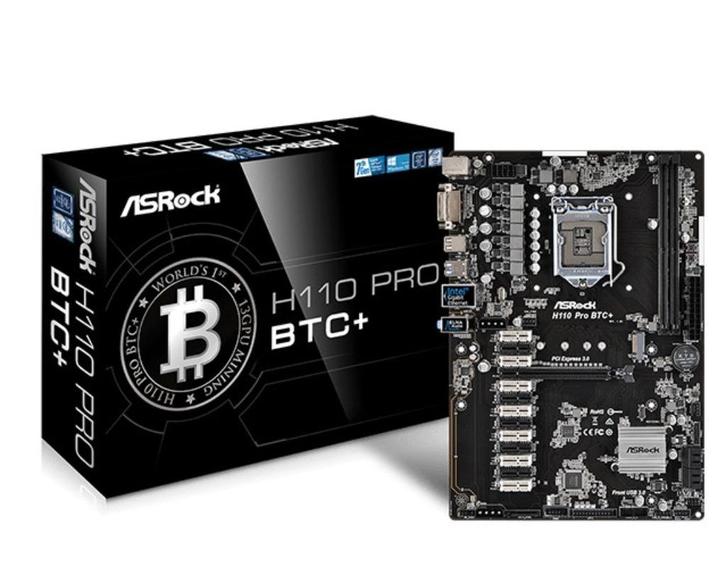

H110 Pro BTC+

ASRock Super Alloy

Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors* 8th and 9th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only

Supports DDR4 2400/2133

1 PCIe 3.0 x16, 12 PCIe 2.0 x1

Graphics Output: DVI-D

7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps

4 SATA3, 1 M.2 (SATA3)

4 USB 3.1 Gen1 (2 Front, 2 Rear)

Intel® Gigabit LAN

Onboard Power On / Reset Button

GRATIS:

zuinige CPU Intel Celeron G3930 @ 2,90 GHz- met geïntegreerde GPU Intel HD Graphics 610 - TDP 51W

koeler

RAM 8GB = 2 x 4GB Crucial DDR4 - 2133MHz

Specificaties van de Intel Celeron Processor G3930:

· Processor: Intel Celeron G3930
· Cores: 2
· Threads: 2
· Basiskloksnelheid: 2,90 GHz
· Cache: 2 MB
· Lithografie: 14 nm
· Thermal Design Power (TDP): 51 watt
· Socket: LGA 1151
· Ondersteund geheugen: DDR4 2133, DDR3L 1333/1600 (tot 64 GB)
· Geïntegreerde grafische processor: Intel HD Graphics 610
· Grafische basiskloksnelheid: 350 MHz
· Maximale dynamische grafische kloksnelheid: 1,05 GHz
· Maximale resolutie: 4096 x 2304 pixels (via HDMI en DisplayPort)
· Maximaal ondersteund aantal displays: 3
· PCI Express versie: 3.0, met maximaal 16 lanes
· Ondersteuning voor virtualisatie: Ja (Intel VT-x, VT-d)
· Instructieset: 64-bit, inclusief SSE4.1, SSE4.2, AES, en meer
· Intel Turbo Boost: Niet ondersteund
· Intel Hyper-Threading: Niet ondersteund
· Meegeleverde koeler: Ja (PCG 2015C, 65W)

Unique Feature H110 Pro BTC+:

ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU

- Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
- Supports CPU up to 91W
- Digi Power design
- 8 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology

Chipset

- Intel® H110

Memory

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

• Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Graphics

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics
- Gen9 LP, DX11.3, DX12
- HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU)
- HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
- Max. shared memory 1024MB
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• The size of maximum shared memory may vary from different operating systems.

Audio

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection
- ELNA Audio Caps

To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN (Supported on Black PCIe Slots only)
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Slots

- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 12 x PCI Express 2.0 x1 Slots

Supports NVMe SSD as boot disk

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
- 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module

If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

Connector

- 1 x Print Port Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 2 x PCIe Power Connectors
- 1 x SATA Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Rear Panel I/O

- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock APP Charger
UEFI
- ASRock Instant Flash

These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Hardware Monitor

- CPU, Chassis temperature sensing
- CPU, Chassis Fan Tachometer
- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU, Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
- Solid Capacitor design

OS

- Microsoft Windows® 10 64-bit (For 7th Gen Intel® CPU)
- Microsoft Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)

To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.

Certifications

- FCC, CE
