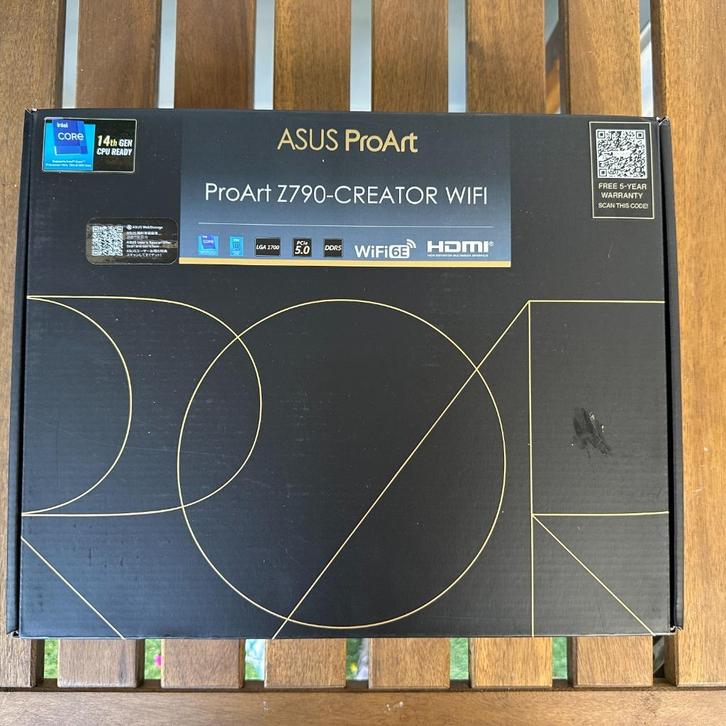

Gloednieuw moederbord, alleen gebruikt voor benchmarking gedurende een periode van een week.

Specificaties:
Fabrikant: ASUS
Model: ProArt Z790-Creator WiFi
Socket: Intel Socket LGA1700
Ondersteunde CPU's: Intel Core 12e, 13e en 14e generatie, Pentium Gold en Celeron
CPU-functies: Ondersteunt Intel Turbo Boost 2.0 en Turbo Boost Max 3.0-technologie
Chipset: Intel Z790-chipset
Geheugen: Ondersteunt 4 DDR5 (4800 tot 7200+ MHz OC non-EEC (XMP) DIMMs OptiMem II
Max. geheugen: Dual Channel tot 192 GB
Voeding: 16+1 gecombineerde voedingsfasen met 70 A per fase.
Graphics: 1 x HDMI 2.1 (4K@60Hz) / 2 x Intel Thunderbolt 4-poorten (USB Type-C) ondersteunen DisplayPort 1.4 (8K@60Hz) en Thunderbolt-video-uitgangen
Uitbreidingsslots (CPU): 2 x PCIe Gen 5.0 x16-slots (ondersteunt x16- of x8/x8-modus)
Uitbreidingsslots (chipset): 1 x PCIe Gen 4.0 x16-slot (ondersteunt x4-modus)
Opslag (CPU): M.2_1-slot (Key M), type 2242/2260/2280/22110 (ondersteunt PCIe 4.0 x4-modus)
Opslag (chipset):
M.2_2-slot (Key M), type 2242/2260/2280 (ondersteunt PCIe 4.0 x4-modus)
M.2_3 (Key M), type 2242/2260/2280/22110 (ondersteunt PCIe 4.0 x4-modus)
M.2_4 (Key M), type 2242/2260/2280 (ondersteunt PCIe 4.0 x4 & SATA-modi)
8 x SATA 6 Gb/s-poorten
Intel Rapid Storage Technology ondersteunt NVMe RAID 0/1/5, SATA RAID 0/1/5/10
LAN: 1 x Marvell AQtion 10 Gb Ethernet / 1 x Intel 2,5 Gb Ethernet met ASUS LANGuard
WIFI: Intel 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ondersteunt de frequentieband 2,4/5/6 GHz
Bluetooth: Bluetooth 5.3
USB aan de achterzijde (totaal 8 poorten):
2 x Thunderbolt™ 4-poort(en) (2 x USB Type-C®) met ondersteuning voor maximaal 5 V/3 A, 15 W opladen
6 x USB 3.2 Gen 2-poort(en) (6 x Type-A)
USB aan de voorzijde (totaal 7 poorten):
1 x USB 3.2 Gen 2x2-connector(en) (ondersteunt USB Type-C® met 60W PD 3.0 / QC 4+)
1 x USB 3.2 Gen 1-header(s) ondersteunt 2 extra USB 3.2 Gen 1-poorten
2 x USB 2.0-header(s) ondersteunt 4 extra USB 2.0-poorten
Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC (5 x audio-aansluitingen)
Vormfactor: ATX (30,5 cm x 24,4 cm)

========================

Brand new motherboard used only for benchmarking over a period a week. Includes ROG Hyper Gen 5 x16 PCIe card with two M.2 slots.

Specifications:
Manufacturer: ASUS
Model: ProArt Z790-Creator WiFi
Socket: Intel Socket LGA1700
Supported CPUs: Intel Core 12th, 13th, and 14th Gen, Pentium Gold, and Celeron
CPU Features: Supports Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 Technology
Chipset: Intel Z790 Chipset
Memory: Supports 4 DDR5 (4800 to 7200+ MHz OC non-EEC (XMP) DIMMs OptiMem II
Max Memory: Dual Channel up to 192 GB
Power Solution: 16+1 teamed power stages with 70A per stage.
Graphics: 1 x HDMI 2.1 (4K@60Hz) / 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 (8K@60Hz) and Thunderbolt video outputs
Expansion Slots (CPU): 2 x PCIe Gen 5.0 x16 slots (supports x16 or x8/x8 modes)
Expansion Slots (Chipset): 1 x PCIe Gen 4.0 x16 slots (supports x4 mode)
Storage (CPU): M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Storage (Chipset):
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 (Key M) type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6 Gb/s ports
Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
LAN: 1 x Marvell AQtion 10Gb Ethernet / 1 x Intel 2.5Gb Ethernet with ASUS LANGuard
WIFI: Intel 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) supports 2.4/5/6GHz frequency band
Bluetooth: Bluetooth 5.3
Rear USB (Total 8 ports):
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
Front USB (Total 7 ports):
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC (5 x Audio Jacks)
Form Factor: ATX (30.5 cm x 24.4 cm)
