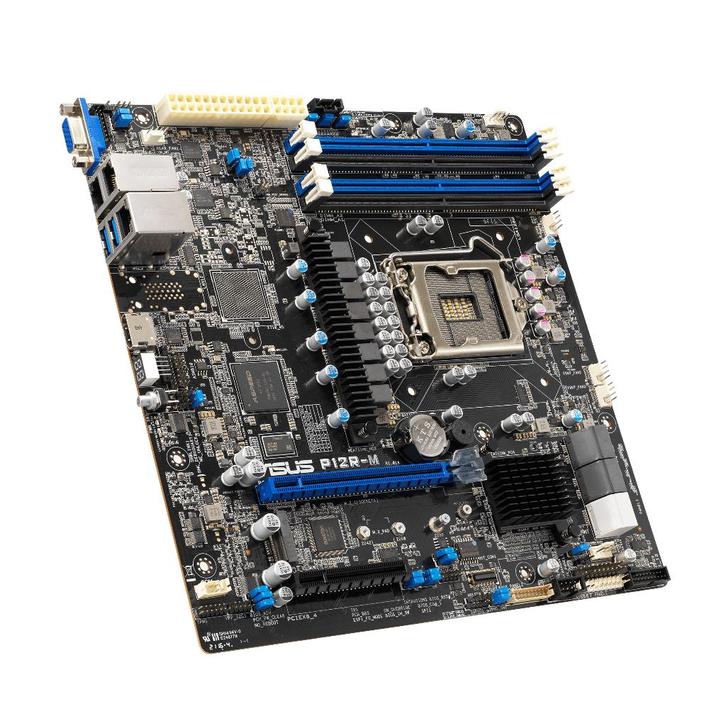

Te koop aangeboden: ASUS P12R-M server moederbord, volledig nieuw en ongeopend.
Geschikt voor professionele toepassingen zoals server, NAS, virtualisatie, homelab of zakelijke workstation.
Specificaties

Processor / System Bus
1 x Socket LGA1200

Intel® Pentium® Processors
Intel® Xeon® E processorsCore Logic
Intel® C252 ChipsetMemory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB

Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)Form Factor
Micro ATX (9.6"x9.6", 244mm x 244mm)Storage
Storage Controller :
6 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID cardNetworking
2 x Intel® I210AT + 1 x Mgmt LANGraphic
Aspeed AST2600 with 64MB VRAMOn Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management cardBack I/O Ports
2 x USB 3.2 Gen 2
1 x VGA Port (VGA from BMC)
1 x HDMI Port (useable only with iGPU)
2 x GbE LAN + 1 x Mgmt LANManagement Solution
ASUS Control Center Enterprise (Optional)
Optional ASMB10-iKVM for KVM-over-InternetWeight
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG

Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KGEnvironment
Operation temperature: 10℃ ~ 50℃*
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
4 x Plate for LGA1200
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1200Monitoring
CPU Temperature
Fan RPMNote

• 1.VGA from BMC
• 2.HDMI (useable only with iGPU)

📍 Afhalen of verzenden mogelijk
📦 Verzending op risico van koper
