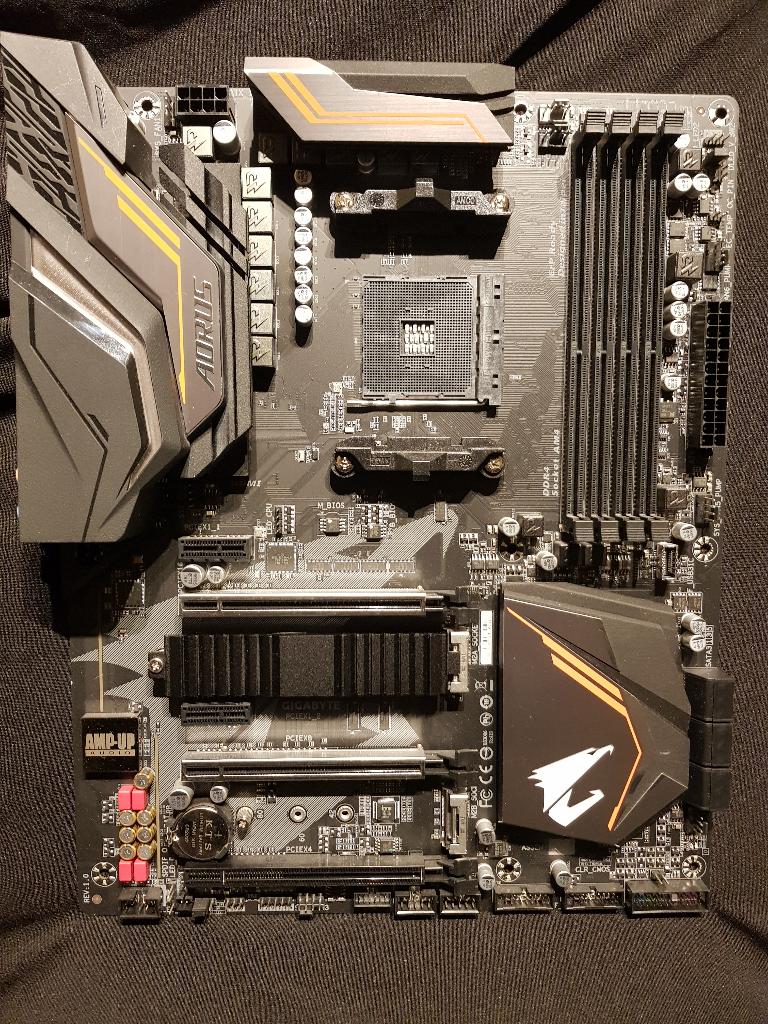

Wegens een upgrade verkoop ik dit x470 moederbord uit het hogere segment. Ondersteunt de Ryzen 5000 serie dus kan nog meerdere jaren mee.

Aansluitingen intern:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x digital LED strip headers

2 x digital LED strip power select jumpers

1 x CPU cooler LED strip/RGB LED strip header

1 x RGB (RGBW) LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x temperature sensor header

Aansluitingen achterkant

4 x USB 2.0/1.1 ports

4 x USB 3.1 Gen 1 ports

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red)

1 x HDMI port

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

Uitgebreide specs:

CPU

AM4 Socket:

(Please refer "CPU Support List" for more information.)

Supports AMD Ryzen™ 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset

AMD X470

Memory

(Please refer "Memory Support List" for more information.)

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor:

Maximum shared memory of 16 GB

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*

Support for HDMI 2.0 version and HDCP 2.2.*

Actual support may vary by CPU.

Audio

Realtek® ALC1220-VB codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)*

Actual support may vary by CPU.

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)*

Actual support may vary by CPU.

The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

The PCIEX4 slot shares bandwidth with the M2B_SOCKET connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.

2 x PCI Express x1 slots

(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Multi-Graphics Technology

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2* SSD support) (M2A_SOCKET)

Actual bandwidth may vary by CPU.

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

ASMedia® USB 3.1 Gen 2 Controller:

CPU:
Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

4 x USB 3.1 Gen 1 ports on the back panel

1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header

4 x USB 3.1 Gen 1 ports available through the internal USB headers

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Out connector

5 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control

Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)

cFosSpeed

Operating System

Support for Windows 10 64-bit

Support for Windows 7 64-bit

To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
