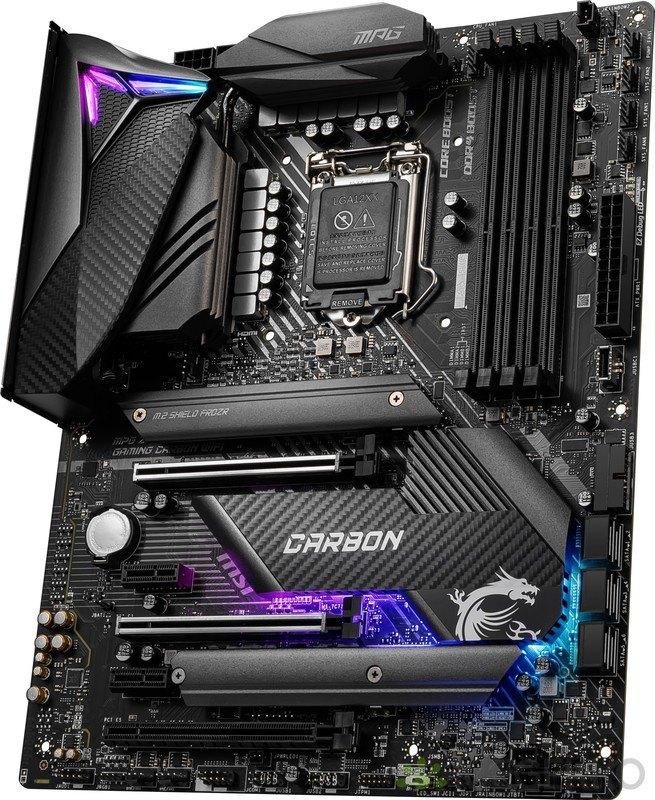

Dit moederbord is aangekocht om een computer mee te bouwen maar blijven liggen daarom verkoop ik deze nieuw in doos compleet.

Ik vraag er € 295,- voor.
Verzendkosten zijn voor de koper ik verstuur alleen via Post NL.

Specificaties gekopieerd van MSI:

upports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket 1 2 3

• Onboard graphics output are disabled when using the F SKU processors.
• BIOS updated to be compatible with 11th Gen Intel® Core™ ProcessorsSee supported processors

Chipset
Intel® Z490 Chipset
Memory

• 4x DDR4 memory slots, support up to 128GB1
• Supports 1R 2133/2666/2933 MHz1
• 1DPC 1R Max speed up to 5000+ MHz
• 1DPC 2R Max speed up to 4500+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• See supported memory

Expansion Slots

• 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
• PCI_E1 & PCI_E3 slots (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU

• PCI_E5 slot (From chipset)

Supports up to PCIe 3.0

• 2x PCIe 3.0 x1 slots

Onboard Graphics

• 1x HDMI™ port, supports a maximum resolution of 4096x2160 @30Hz
• 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
• Maximum shared memory is 1GB

Multi-GPU

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology

Storage

• 6x SATA 6Gb/s ports 1/ 2
• 2x M.2 slots (Key M)
• M2_1 slot

CPU support mode (From 11th Gen Intel® CPU only)- supports PCIe 4.0 x4/3.0 x4
Chipset support mode-supports PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices1

• M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices2
• Intel® Optane™ Memory Ready3
• Supports Intel® Smart Response Technology for Intel Core™ processors

• SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
• SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.RAID

Intel® Z490 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset

• 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia® ASM3241 Chipset

• 1x USB 3.2 Gen 2x2 20Gbps port on the back panel

Audio
Realtek® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

WiFi & Bluetooth
Intel® AX201

• Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• WiFi 6
• Supports Bluetooth® 5.1 , FIPS, FISMA
• The Wireless module is pre-install in the M2 (Key-E) slot

• Only support windows 10 64-bitInternal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector
• 1x Serial port connector
• 1x TPM module connector
• 1x RTD3 connector
• 1x Clear CMOS jumper
• 1x TBT connector 1

• Thunderbolt card need support RTD3
