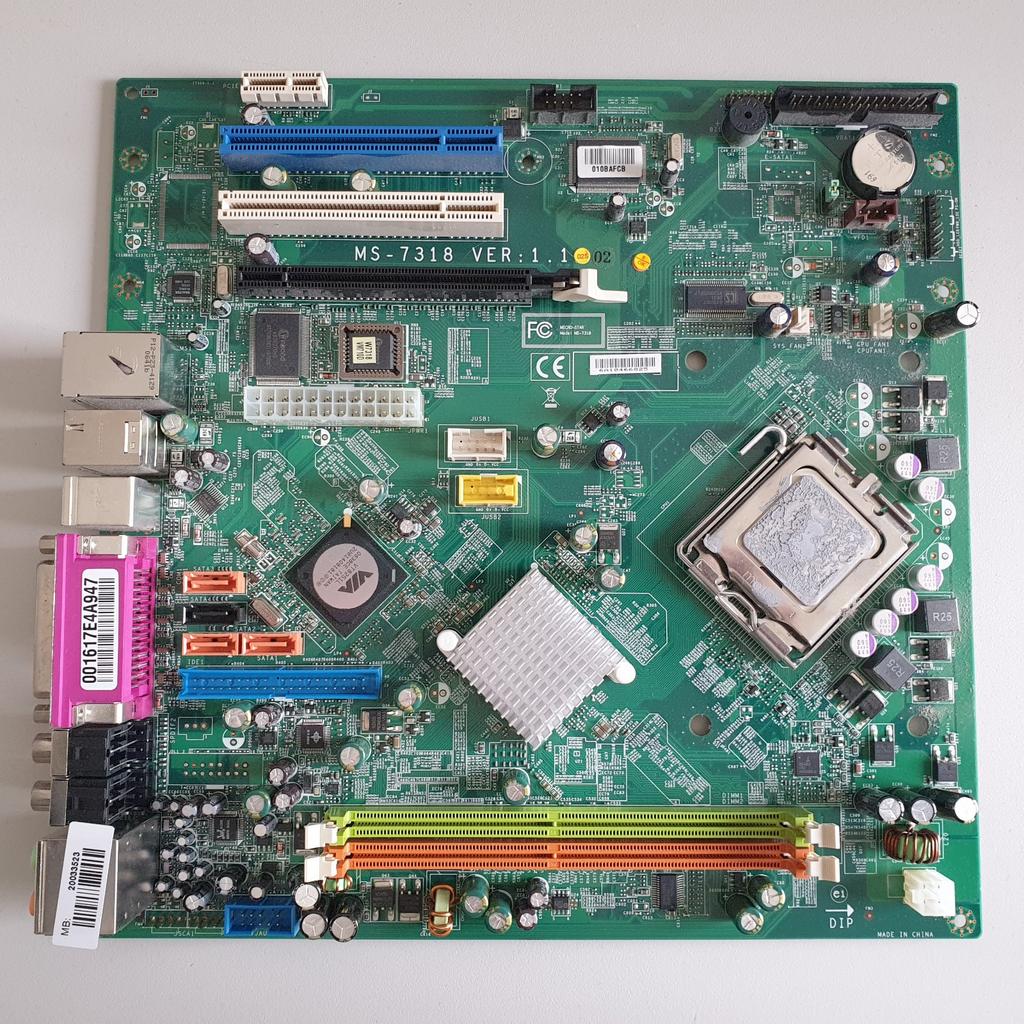

PC motherboard MS-7318
English description below

Beschrijving
MSI MS-7318 v1.1 is een Medion OEM moederbord voor oudere desktop-pc’s. Het gebruikt socket LGA775 en is gebaseerd op de VIA PT890CE northbridge en VT8251L southbridge. Dit bord kwam voor in onder meer Medion MD8818 en MD8822 systemen. Het is een compact M-BTX bord met ondersteuning voor oudere Intel Core 2, Pentium 4 / D en Celeron D processors, DDR2-geheugen, PCI Express uitbreidingskaarten, SATA-opslag, FireWire en 8-kanaals audio.
Parameters
Merk: MSI
Model: MS-7318
Revisie: v1.1
OEM: Medion
Form factor: M-BTX
Afmetingen: ca. 26.7 × 26.5 cm
CPU socket: LGA775
Ondersteunde CPU’s: Intel Core 2 Duo Conroe E6300 / E6400 / E6700 / E6800, Pentium 4 Prescott 500-serie, Cedar Mill, Pentium D Smithfield, Celeron D
Chipset: VIA PT890CE northbridge + VIA VT8251L southbridge
Geheugen: 2 × DDR2 DIMM, single-channel DDR2-533, max. 2 GB
Uitbreidingsslots: 1 × PCIe x16, 1 × PCIe x1, 2 × PCI
Opslag: 4 × SATA 1.5 Gb/s, 1 × IDE/PATA voor 2 apparaten, 1 × floppy
Audio: Realtek ALC888, 8-kanaals HD audio
Netwerk: 10/100 Fast Ethernet, Realtek PHY
FireWire: IEEE 1394, VIA VT6308P, tot 400 Mb/s
Achterpaneel: 4 × USB 2.0, 1 × RJ45, 1 × IEEE1394, PS/2 keyboard, PS/2 mouse, 1 × COM, 1 × LPT, 5 × audio jacks, S/PDIF coax in/out, S/PDIF optical in/out
Interne aansluitingen: 24-pin ATX, 4-pin CPU power, CPU fan, system fan, front audio, front panel, front LCD, USB headers voor 4 extra USB-poorten, 1394 header, Clear CMOS jumper
BIOS / OEM association: seen associated with Medion BIOS W7318M7 in MD8818 / MD8822 systems.

English
MSI MS-7318 v1.1 is a Medion OEM motherboard for older desktop PCs. It uses socket LGA775 and is based on the VIA PT890CE northbridge and VT8251L southbridge. This board is commonly associated with Medion MD8818 and MD8822 systems. It is a compact M-BTX board with support for older Intel Core 2, Pentium 4 / D and Celeron D processors, DDR2 memory, PCI Express expansion cards, SATA storage, FireWire, and 8-channel audio.
Parameters
Brand: MSI
Model: MS-7318
Revision: v1.1
OEM: Medion
Form factor: M-BTX
Dimensions: approx. 26.7 × 26.5 cm
CPU socket: LGA775
Supported CPUs: Intel Core 2 Duo Conroe E6300 / E6400 / E6700 / E6800, Pentium 4 Prescott 500 series, Cedar Mill, Pentium D Smithfield, Celeron D
Chipset: VIA PT890CE northbridge + VIA VT8251L southbridge
Memory: 2 × DDR2 DIMM, single-channel DDR2-533, max. 2 GB
Expansion slots: 1 × PCIe x16, 1 × PCIe x1, 2 × PCI
Storage: 4 × SATA 1.5 Gb/s, 1 × IDE/PATA for up to 2 devices, 1 × floppy
Audio: Realtek ALC888, 8-channel HD audio
Networking: 10/100 Fast Ethernet, Realtek PHY
FireWire: IEEE 1394, VIA VT6308P, up to 400 Mb/s
Rear I/O: 4 × USB 2.0, 1 × RJ45, 1 × IEEE1394, PS/2 keyboard, PS/2 mouse, 1 × COM, 1 × LPT, 5 × audio jacks, S/PDIF coax in/out, S/PDIF optical in/out
Internal connectors: 24-pin ATX, 4-pin CPU power, CPU fan, system fan, front audio, front panel, front LCD, USB headers for 4 extra USB ports, 1394 header, Clear CMOS jumper
BIOS / OEM association: seen associated with Medion BIOS W7318M7 in MD8818 / MD8822 systems.
