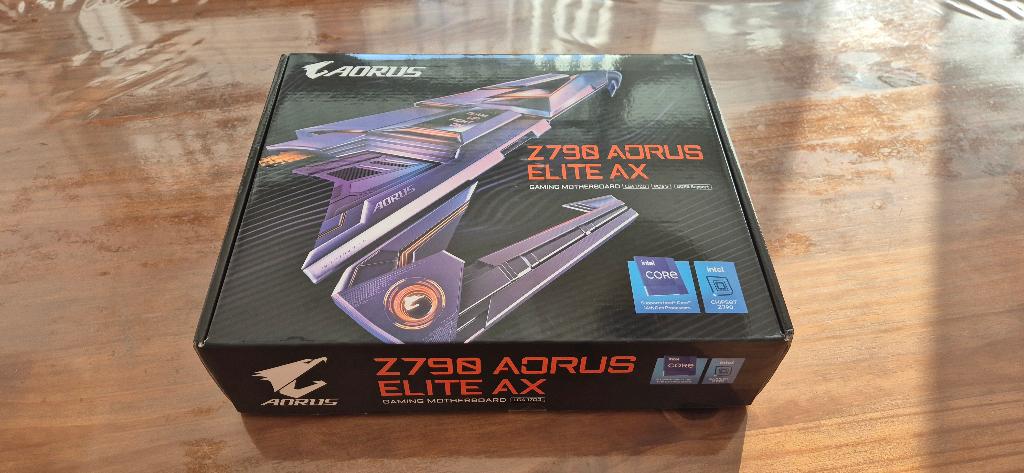

Na 4 maanden gebruik en dat mijn audio crashte heb ik een andere moederbord gehaald en daar crashte het audio ook. Uiteindelijk had ik dus een oude geluidskaart die niet meer werd ondersteund door Windows 11 het lag dus niet aan het moederbord. Helaas houd ik dus dit moederbord over voor de verkoop.

Kost €215,- nieuw in de winkel

Getest met DDR5 - 7200 en I7 14700K

• CPU
• (Please refer "CPU Support List" for more information.)
• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU
• Chipset
• Intel® Z790 Express Chipset
• Memory
• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:

(Graphics specifications may vary depending on CPU support.)

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.

Support native HDMI 2.1 TMDS compatible ports.

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
• Support for DisplayPort 1.2 version and HDCP 2.3
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out
• LAN
• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
• Intel® Wi-Fi 6E AX211
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• Actual data rate may vary depending on environment and equipment.
• Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
