Kenmerken
Conditie
Gebruikt
Chipset
Overige typen
Socket
Socket 754
Soort geheugen
DDR
Vormfactor
Micro ATX
Beschrijving

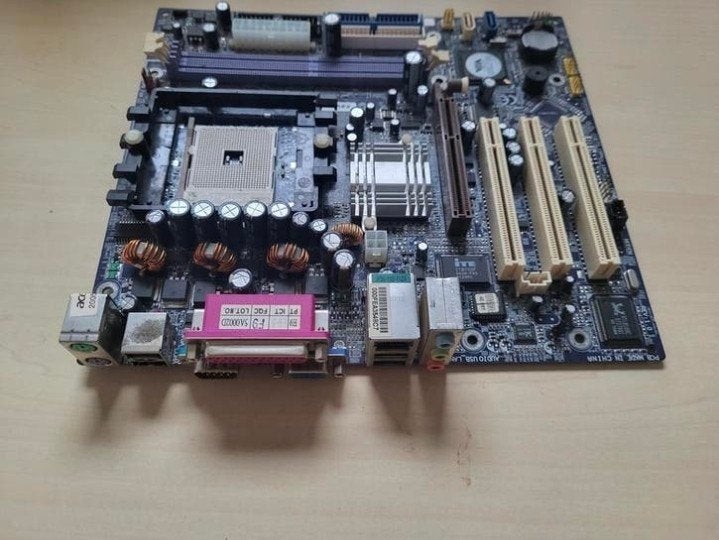

Een gebruikt Gigabyte GA-K8VM800AE moederbord. Dit moederbord is geschikt voor Socket 754 processors en ondersteunt DDR geheugen. Ideaal voor het repareren of bouwen van een retro-pc. Het moederbord is getest en werkt naar behoren. Wordt geleverd zonder accessoires.
The Gigabyte GA-K8VM800MAE is an older microATX motherboard (OEM variant, often associated with Acer systems) based on the VIA K8M800 chipset. It was released around the mid-2000s and designed for AMD's Socket 754 platform.
This board is essentially a variant or close relative of the retail Gigabyte GA-K8VM800M (rev. 1.x or similar), sharing the same core architecture and features. It was commonly found in pre-built desktop PCs from that era.
Key Specifications
CPU Socket: Socket 754 (supports AMD Athlon 64, Athlon 64 Mobile, and Sempron processors; max around Athlon 64 3700+ or similar, depending on BIOS).Chipset: VIA K8M800 (Northbridge + Southbridge combo, with integrated graphics).Front Side Bus (FSB): Up to 800 MHz (HyperTransport).Memory:2 × DDR DIMM slots.Supports DDR-266/333/400 (PC2100/PC2700/PC3200).Maximum capacity: Typically 2 GB (1 GB per slot, though some configs allow up to 2 GB total).
Integrated Graphics: VIA UniChrome™2 (or UniChrome Pro) IGP — basic onboard video with shared system memory (up to 128 MB allocatable).Expansion Slots:1 × AGP 8x/4x slot (for discrete graphics cards).PCI slots (usually 2–3, depending on exact layout).
Storage:Integrated Serial ATA (SATA) support (likely 2 ports, with RAID 0/1 in some configs).2 × IDE (PATA) channels.Floppy connector.
I/O Ports (rear panel, typical for this series):PS/2 keyboard and mouse.Parallel port, serial port.USB 2.0 ports.Audio jacks (Realtek or similar codec).LAN (Realtek RTL8100 series Fast Ethernet).
Form Factor: microATX (approx. 244 × 220 mm or similar).Other Features: Basic integrated audio, 10/100 Ethernet, and standard legacy ports. No modern features like PCIe, USB 3.0, or DDR2/DDR3 support.
The Gigabyte GA-K8VM800MAE is an older microATX motherboard (OEM variant, often associated with Acer systems) based on the VIA K8M800 chipset. It was released around the mid-2000s and designed for AMD's Socket 754 platform.
This board is essentially a variant or close relative of the retail Gigabyte GA-K8VM800M (rev. 1.x or similar), sharing the same core architecture and features. It was commonly found in pre-built desktop PCs from that era.
Key Specifications
CPU Socket: Socket 754 (supports AMD Athlon 64, Athlon 64 Mobile, and Sempron processors; max around Athlon 64 3700+ or similar, depending on BIOS).Chipset: VIA K8M800 (Northbridge + Southbridge combo, with integrated graphics).Front Side Bus (FSB): Up to 800 MHz (HyperTransport).Memory:2 × DDR DIMM slots.Supports DDR-266/333/400 (PC2100/PC2700/PC3200).Maximum capacity: Typically 2 GB (1 GB per slot, though some configs allow up to 2 GB total).
Integrated Graphics: VIA UniChrome™2 (or UniChrome Pro) IGP — basic onboard video with shared system memory (up to 128 MB allocatable).Expansion Slots:1 × AGP 8x/4x slot (for discrete graphics cards).PCI slots (usually 2–3, depending on exact layout).
Storage:Integrated Serial ATA (SATA) support (likely 2 ports, with RAID 0/1 in some configs).2 × IDE (PATA) channels.Floppy connector.
I/O Ports (rear panel, typical for this series):PS/2 keyboard and mouse.Parallel port, serial port.USB 2.0 ports.Audio jacks (Realtek or similar codec).LAN (Realtek RTL8100 series Fast Ethernet).
Form Factor: microATX (approx. 244 × 220 mm or similar).Other Features: Basic integrated audio, 10/100 Ethernet, and standard legacy ports. No modern features like PCIe, USB 3.0, or DDR2/DDR3 support.
...
...
...
...
...
...
...
...
...
...
...
...
