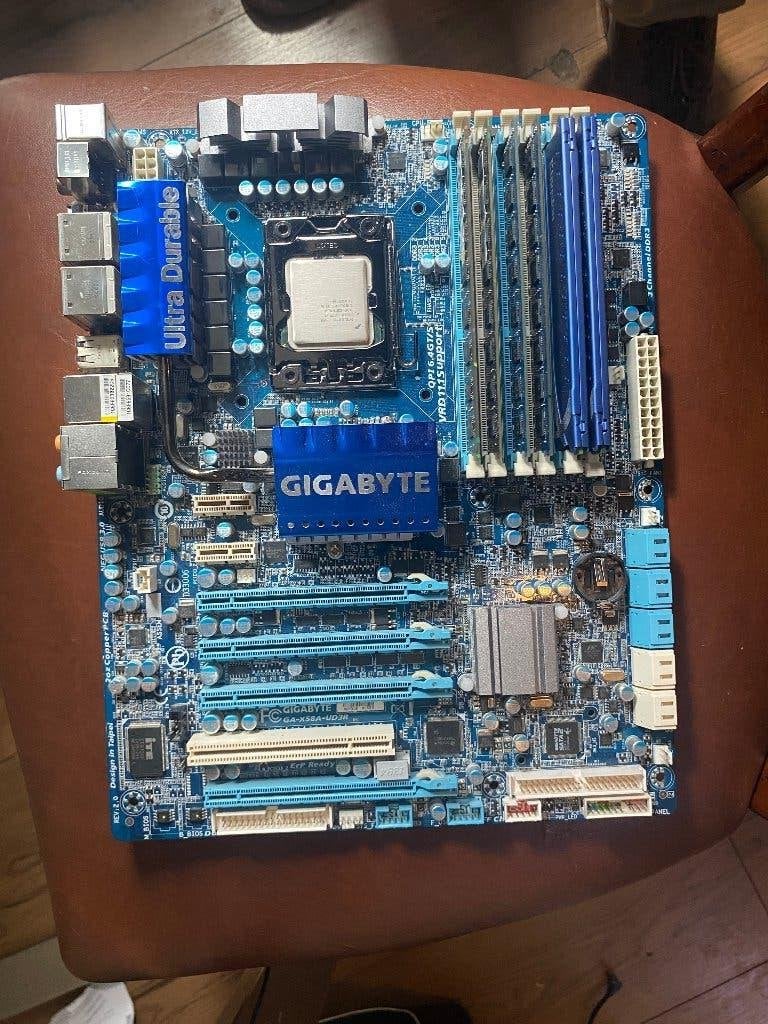

Inclusief;
Intel i7 950 Processor

6x 4Gb DDR3 10660mhz Geheugen
Koeler

Doe hem weg na upgade
Geod Werkend

Support for an Intel® Core™ i7 series processor in the LGA1366 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
QPI
4.8GT/s, 6.4GT/s
Chipset
North Bridge: Intel® X58 Express Chipset
South Bridge: Intel® ICH10R
Memory
6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
Dual/3 channel memory architecture
Support for DDR3 2200/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
1 x Realtek RTL8111D chip (10/100/1000 Mbit)
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conform to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
1 x PCI slot
Multi-Graphics Technology
Support for 2-Way/3-Way ATI CrossFireX™/NVIDIA SLI technology
Storage Interface
South Bridge:
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 9128 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0, and RAID 1

• SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
• SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the South Bridge
Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
Up to 2 USB 3.0/2.0 ports on the back panel

• USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
