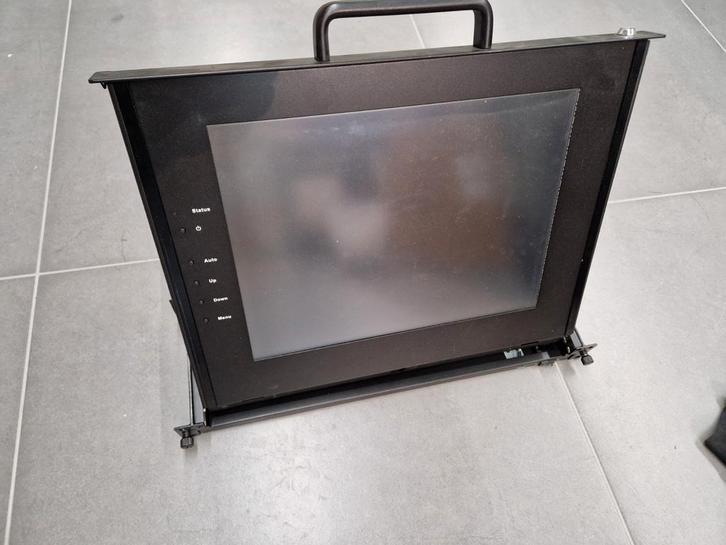

LIF J.K. PD-115 Rack Console met een 15 inch touchscreen. Deze 1U hoge console is ideaal voor serverbeheer in een 19 inch rack omgeving.
2 stuks beschikbaar, werkend gedemonteerd.


Model name PD-115
Dimension 447.3 x 481.9 x 43.0 mm / 17.6 x 19.0 x 1.7 inches
Package Dimension 605 x 560 x 202 mm / 23.8 x 22.0 x 8.6 inches
Net Weight 11.0 Kg / 24.3 lbs
Gross Weight 15.2 Kg / 30.8 lbs
Display Size 15 inches
Panel Type Active Matrix TFT LCD
Resolution Capabilities Maximum Resolution up to 1024 x 768 (XGA)
Pixel Pitch 0.297 mm x 0.297 mm
Viewing Angle (CR>10) Right-Left View 130° (Typ)
Up-Down View 100° (Typ)
Contrast Ratio 400 : 1
Brightness White 250 cd/m²
Back Light Dual Lamps for Back Light
Supported Colors 16M Colors (8-bit with FRC)
Response Time Rising Time 5 ms, Decay Time 11 ms
System Cables VGA + PS/2 x 2 cable or VGA + USB x 1 cable
Sync 45 ~ 80 KHz
Power Source 100 ~ 240 VAC input
Power Consumption 10.41 W
Temperature Operate 0° ~ 50°C / 32° ~ 122°F
Storage -20° ~ 60°C / -4° ~ 140°F
Humidity 10% ~ 90% RH
Chassis Construction Heavy duty steel materials
Touch Panel 5 wires resistive USB interface
