DELL D/PN 0P121H original by LG model: LP156WH1-TLB1 (life's Good) LP156WH1 15.6" WXGA HD 1366x768 CCFL WXGA HD LCD Display/ Screen panel LCD screen Display beeldscherm laptop 30-pin DELL Inspirion 15 1545 1564 1565 Acer Aspire 55xx 57x0 HP G61 HP Pavilion DV6 Compaq Presario CQ60 CQ61 CQ62 Sony Vaio VGN-NW21SF/T VGN-NW21EF/S,Samsung R519, Satellite L500 e.a. Inverter

Prijs € 34,95 + € 7,95 verzendbijdrage NL (vanaf) DHL parcel track & trace afhaalpunt (of optioneel € 8,95 DHL thuisbezorging Verzekering)

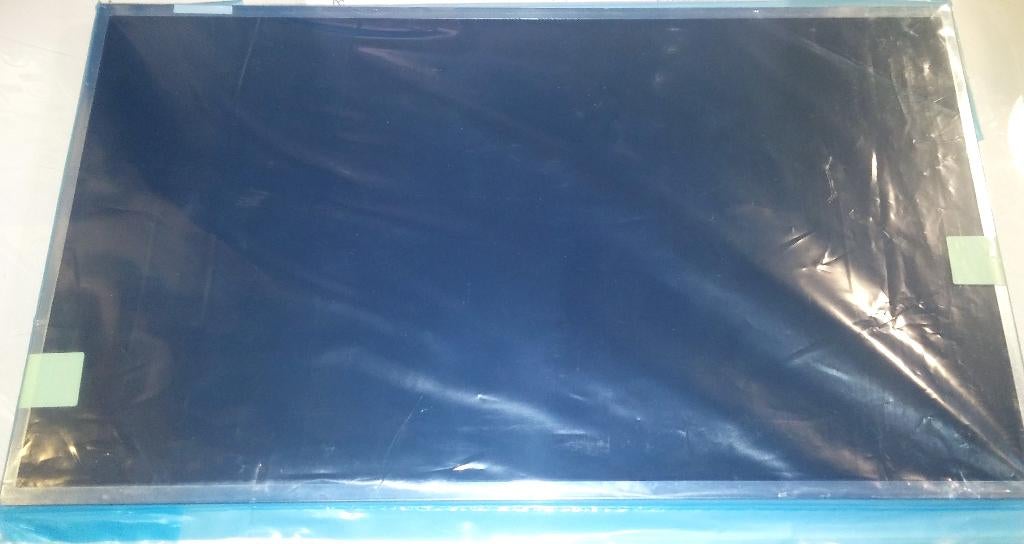

Brand new CCFL WXGA HD LCD Display/ Screen panel LCD screen (Nieuw Folie Seal) Original LG model LP156WH1 LCD screen assembly DELL original Partnumber onderdeel

Nieuw packed in ESD (electro sensitive devices) verpakking, sealed met scherm folie uit OEM voorraad (OEM: Original Equipment Manufacturer no retail or accesoiries)

Dell kwaliteit geproduceerd door LG (Life's Good) logo's, keurmerken en echtheidkenmerken aanwezig

Non-Touch / Geen Touchscreen

Voorzien van LVDS (30-pin) connector geschikt voor een flatcable (niet meegeleverde flatcables)

Met een 2-pin connector (voeding) en connector

5 maanden niet goed geld terug garantie (= vervangend onderdeel garantie bij DOA en onvoorziene defecten)

Specificaties

Partnumbers / onderdeelnummer

LG Display Co. Ltd

DELL CN-0P121H-56252-9CT-00J2-A01

LG model LP156WH1 B1 0P121H

1366X768 (WXGA HD) 16:10 Wide Xtended Graphics Array

P/N 68705-1560C

LP156WH1-TLA1

Designed 2008 /05 /30

ASSEY P/N 1560C5 BAD291J

Compatible partnumbers

0P121H

59.15B34.003/J1

B156XW01

B156XW01 V.0

B156XW01 V.2

CLAA156WA01

CLAA156WA01A

LK15605001847C05332000

LP156WH1(TL)(A1)

LP156WH1(TL)(A2)

LP156WH1(TL)(A3)

LP156WH1(TL)(B1)

LP156WH1(TL)(C1)

LP156WH1(TL)(C2)

LTN156AT01

LTN156AT01-B01

LTN156AT01-D1

LTN156AT01-W01

N156B3-L01

N156B3-L02

N156B3-L0B
-------------------------
Technical specifications

Brand LG Display Model P/N LP156WH1-TLB1

Diagonal Size 15.6"

Panel Type a-Si TFT-LCD, LCM

Resolution 1366(RGB)×768, WXGA 100PPI

Pixel Format RGB Vertical Stripe

Active Area 344.232(W)×193.536(H) mm

Bezel Opening 349.8(W)×197.1(H) mm

Outline Size 359.3(W)×209.5(H)×6.4(D) mm

Surface Glare Treatment Antiglare, Hard coating (3H)

Contrast Ratio 400 : 1 (Typ.) (TM)

Response Time: 16 (Typ.)(Tr+Td)

Touch Screen : No Touchscreen

Lamp Type 1 pcs CCFL , 15K hours , Without Driver

Brightness 220 cd/m² (Typ.)

Viewing Angle 45/45/15/35 (Min.)(CR=10)

Best View on 6 o'clock

Color Depth 262K 60% NTSC

Frequency 60Hz

Outline Shape Style Wedge (PCBA Bent, T=5.2mm)

Signal Interface: LVDS (1 ch, 6-bit) , 30 pins Connector

Input Voltage 3.3V (Typ.)

Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Work Mode TN, Normally White, Transmissive
--------------------

Compatible with the following Dell notebooks

Dell Inspiron 15 1564

DeLL Inspiron 15 1565

Dell Inspiron 15 1545-5540 15,6" • 1366x768 • 320GB • Intel Pentium

Dell Inspiron 15 1545-3219 15,6" • 1366x768 • 250GB • Intel Pentium

Dell Inspiron 15 (3520-4493) 15,6" 1366x768 • 500GB • Intel Pentium

Dell Inspiron 15 (N0054518)15,6" 1366x768 • 250GB • Intel Celeron

Dell Inspiron 15 (N0254504) 15,6" 1366x768 • 250GB • Intel overig

Dell Inspiron 15 (5547- cn54719) 15,6" 1366x768 • 1TB • Intel Core i5

Dell Inspiron 15 (N0254506) 15,6" 1366x768 • 320GB • Intel overig

Dell Inspiron 15 (N0254505) 15,6" 1366x768 • 320GB • Intel overig

Dell Inspiron 15 (N0254503) 15,6" 1366x768 • 160GB • Intel Pentium

Dell Inspiron 15 (n00n5320) 15,6" • 1366x768 • 320GB • Intel Pentium

Dell Inspiron 15 (5547-6421) 15,6" • 1366x768 • 1TB • Intel Core i5

Dell Inspiron 15 (5547-3191) 15,6" • 1366x768 • 1TB • Intel Core i5

Dell Inspiron 15 (SBN15322) 15,6" • 1366x768 • 500GB • Intel Core i3

Dell Inspiron 15 (N0254502) 15,6" • 1366x768 • 160GB • Intel Celeron

Dell Inspiron 15 (N0056416) 15,6" • 1366x768 • 500GB • Intel Core i5

Dell Inspiron 15 (N0054512) 15,6" • 1366x768 • 500GB • Intel Pentium

Dell Inspiron 15 (n0035140) 15,6" • 1366x768 • 500GB • Intel Core i3

Dell Inspiron 15 (n00n5322) 15,6" • 1366x768 • 500GB • Intel Pentium

Dell Inspiron 15 (n00n5319) 15,6" • 1366x768 • 320GB • Intel Celeron

Dell Inspiron 15 (5547-6445) 15,6" • 1366x768 • 1TB • Intel Core i7

Dell Inspiron 15 (5547-6186) 15,6" • 1366x768 • 1TB • Intel Core i5

Dell Inspiron 15 (5547- cn54715) 15,6" • 1366x768 • 1TB • Intel Core i5

Dell Inspiron 15 (5547- cn54718) 15,6" • 1366x768 • 1TB • Intel Core i7

Dell Inspiron 15 (5030-7841) 15,6" • 1366x768 • 320GB • Intel Pentium

Dell Inspiron 15 (3542-6407) 15,6" • 1366x768 • 1TB • Intel Core i5

Dell Inspiron 15 (3542-6360) 15,6" • 1366x768 • 500GB • Intel Core i3

Onder voorbehoud Compatibel met andere merken Laptop / notebooks aldus derden

--------------------

Acer Aspire 5336

Acer Aspire 5336 Series

Acer Aspire 5336-902G25MN

Acer Aspire 5532

Acer Aspire 5532 Series

Acer Aspire 5535

Acer Aspire 5535 Series

Acer Aspire 5535-604G25MN

Acer Aspire 5536

Acer Aspire 5536G

Acer Aspire 5552 Series

Acer Aspire 5732 Series

Acer Aspire 5732Z

Acer Aspire 5734 Series

Acer Aspire 5734Z

Acer Aspire 5735

Acer Aspire 5735 Series

Acer Aspire 5735Z

Acer Aspire 5735Z-324G25MN

Acer Aspire 5738

Acer Aspire 5738 Series

Acer Aspire 5738G

Acer Aspire 5738Z

Acer Aspire 5738ZG

Acer eMachines E525

Acer eMachines E725

--------------------

HP G60 / G61 Hewlett Packard

HP G61 series

HP G61-410ED

HP G61-420ED

HP Pavilion DV6 series

HP Pavilion dv6-1000 Series

HP Pavilion dv6-1010ed

HP Pavilion dv6-1020ed

HP Pavilion dv6-1100 Series

HP Pavilion dv6-1140ed

HP Pavilion dv6-1160ed

HP Pavilion dv6-1200 Series

HP Pavilion dv6-1211sg

HP Pavilion dv6-1215sd

HP Pavilion dv6-1220sd

HP Pavilion dv6-1240ed

HP Pavilion dv6-1300 Series

HP Pavilion dv6-1320sd

HP Pavilion dv6-1340ed

HP Pavilion dv6-1400 Series

HP Pavilion dv6-1420ed

HP Pavilion dv6-2000 Series

HP Pavilion DV6-2030sd

HP Pavilion DV6-2100 Series

HP Pavilion DV6-2120ed

HP Pavilion DV6-2130ed

HP Pavilion DV6-2140ed

HP Pavilion DV6-3000 Series

HP Pavilion DV6-3100 Series

HP Pavilion DV6-3200 Series

HP Pavilion DV6-3300 Series

HP Pavilion DV6-6000

HP Pavilion DV6-6000 Series

HP Pavilion DV6-6100 Series

HP Pavilion DV6-6105ed

HP Pavilion DV6-6170sd

HP Pavilion DV6-6171sd

HP Compaq 4510s

--------------------

Compaq Presario CQ60 CQ61 CQ62

Compaq Presario CQ60-100 series

Compaq Presario CQ60-100ED

Compaq Presario CQ60-130ED

Compaq Presario CQ60-140ED

Compaq Presario CQ60-200 series

Compaq Presario CQ60-200ED

Compaq Presario CQ60-206ED

Compaq Presario CQ60-300 series

Compaq Presario CQ60-300ED

Compaq Presario CQ60-310ED

Compaq Presario CQ60-400SD

Compaq Presario CQ61 Series

Compaq Presario CQ61-100SD

Compaq Presario CQ61-210SD

Compaq Presario CQ61-220ED

Compaq Presario CQ61-240ED

Compaq Presario CQ61-310SD

Compaq Presario CQ61-320SD

Compaq Presario CQ61-330SD

Compaq Presario CQ61-405ED

Compaq Presario CQ61-430SD

Compaq Presario CQ61-445ED

Compaq Presario CQ62 Series

Compaq Presario CQ62-a10SD

--------------------
Emachines E525

Packard Bell EasyNote TN65 Series
--------------------
Samsung R519

Samsung R519 Series
--------------------
Sony VAIO VGN-NW21SF/T

Sony Vaio VGN-NW21EF/S

Sony Vaio VPCEB1J1E/WI PCG-71312M
--------------------
Toshiba Satellite L500 Series

Toshiba Satellite L500-128

Toshiba Satellite L500D-11J

Toshiba Satellite L500D-11J
--------------------
Packard Bell Easynote TK85
--------------------
Asus A52J
