Refurbished Avago AFBR-57R5AEZ met garantie

1110sinds 16 feb. '23, 13:17

Koop met zekerheid

€ 28,95

Ophalen of Verzenden

Kenmerken

Productnummer (EAN)

ConditieZo goed als nieuw

Beschrijving

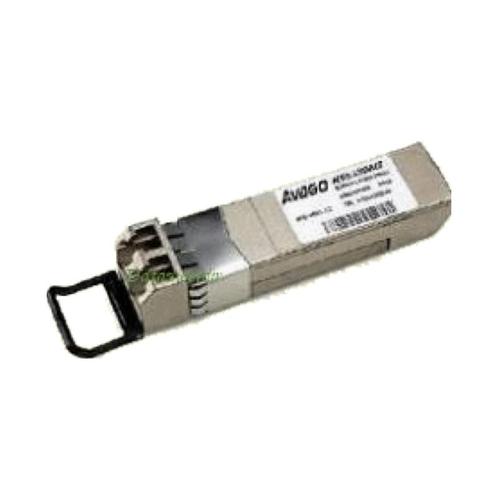

Avago AFBR-57R5AEZ 4Gbps MMF+DMI Small Form (SFP) transceiver 850nm met minimaal 2 jaar garantie

Wordt bulk in antistatische verpakking geleverd.

Avago’s AFBR-57R5AEZ optical transceiver supports high-speed serial links over multimode optical fiber at signaling rates up to 4.25 Gb/s. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC Duplex transceivers, ANSI Fibre Channel FC-PI, FC-PI-2 and compatible with IEEE 802.3 for gigabit applications. The part is electrically interoperable with SFP conformant devices.

Fully RoHS Compliant
Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
Real time monitoring of:

Transmitted optical power
Received optical power
Laser bias current
Temperature
Supply voltage

Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
Transceiver specifications per SFP (SFF-8074i) Multi-Source Agree-ment and SFF-8472 (revision 9.3)

4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I and 400-M6-SN-I
2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I

Link lengths at 4.25 GBd:

150 m with 50 µm MMF, 70 m with 62.5 µm MMF

Link lengths at 2.125 GBd:

300 m with 50 µm MMF, 150 m with 62.5 µm MMF

Link lengths at 1.0625 GBd:

500 m with 50 µm MMF, 300 m with 62.5 µm MMF

LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
Compatible with Gigabit Ethernet
Enhanced EMI performance for high port density applications

4Gbps 850mm SFP (Small Form Factor) uitvoering
beschikt over LC-connectoren
Geproduceerd voor IBM. IBM PN: 22R4897, IBM EAN: 5050689799967, UPC: 000435799968

Ruim 4500 klanten geven ons een schitterende 9.8 als rapportcijfer (4.9 uit 5 sterren). Je krijgt van ons altijd minimaal twee jaar garantie (ook op refurbished).
