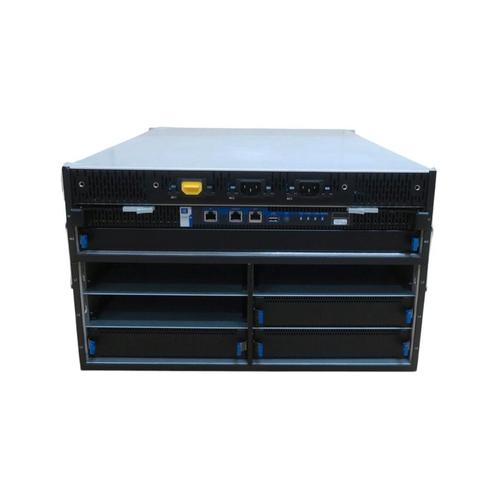

Mellanox SX6506 MSX-6506-NR

Condition: New Open Box

The Mellanox MSX6506-NR, also known as the SX6506, is a high-performance modular switch chassis designed for data centers and high-performance computing environments. Description: The SX6506 is built with Mellanox's SwitchX® InfiniBand switch device, providing up to 108 non-blocking 56Gb/s full bi-directional bandwidth per port. This chassis is suitable for medium to extremely large clusters, offering reliability and manageability expected from a director-class switch. It features hot-swappable leaf, spine blades, management modules, power supplies, and fan units, ensuring minimal downtime.

Features:

• Switching Capacity: Up to 7.2Tb/s (full bi-directional bandwidth).
• Port Speed: Supports up to 108 non-blocking FDR 56Gb/s InfiniBand ports.
• Low Latency: Provides ultra-low port-to-port latency, ideal for high-performance computing (HPC).
• Modular Architecture: Supports hot-swappable leaf and spine modules for scalability.

Whats in the Box?

• MSX-6506-NR

Specifications:

General Information

• Number of Ports: 108
• Model Number: MSX-6506-NR
• Item Dimensions - H x W x D (IN): 10.43 x 19 x 27
• Airflow: N/A
• Power Source Type: AC
• Item Weight (LBS): 70
