Condition: Refurbished

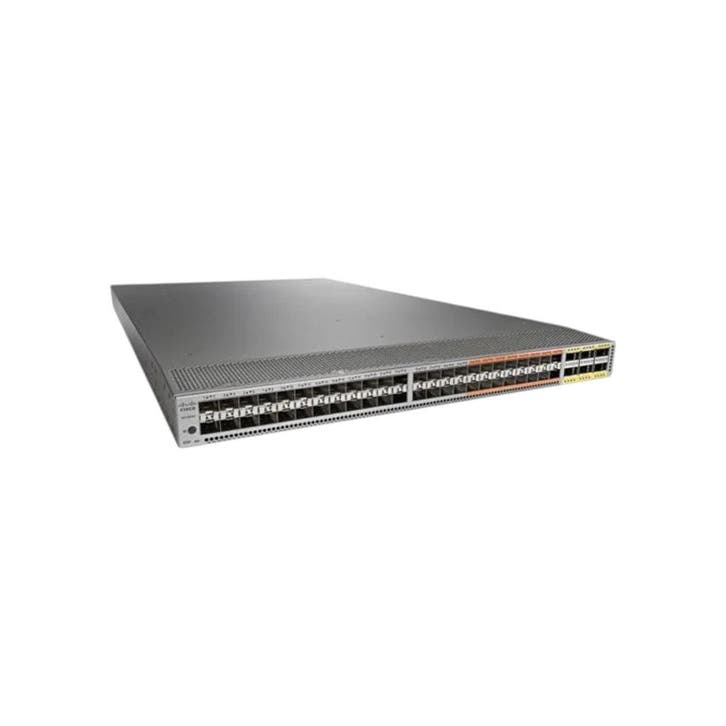

Cisco N5K-C5672UP-16G

The Cisco N5KC5672UP16G is a 1U rackmount, highperformance datacenter switch in the CiscoNexus 5000series family . It supports 1Gb, 10Gb, and 40Gb Ethernet — as well as storageclass connectivity (Fibre Channel / FCoE) on “unified” ports — making it both a LAN and SAN switch. 48 fixed 1/10GbSFP+ ports — of which 24 are “unified ports (UP)” that can handle 10Gb Ethernet, FCoE, or 2/4/8 (and in some docs 16) Gbps Fibre Channel.

Features:

• Mixed 10Gb + 40Gb + FibreChannel/FCoE support — It offers 48 fixed 1/10Gb SFP+ ports (with up to 24 “unified ports” that support 10Gb Ethernet, FCoE, or 2/4/8/16Gb Fibre Channel) plus 6 fixed 40Gb QSFP+ ports.
• High throughput & low latency — Hardware (wirespeed) Layer 2 and Layer 3 forwarding up to ~1.44Tbps and ~1,071 million packets per second (64byte packets). Low “cutthrough” latency ~1microsecond (regardless of packet size or enabled features).
• Enterpriseclass Layer 2/L3 features — Full VLANs (up to 4,000), many ACLs, EtherChannel / portchannel, vPC, VLAN trunking, jumbo frames (up to 9,216 bytes), robust QoS, multicast and Layer3 routing (static, OSPF, BGP etc.), VRF, multicasting, and more.
• FCoE / FibreChannel bridging + SAN + LAN in one box — Unified ports allow for Ethernet, FCoE or native FC — great if you want to combine storage (SAN) and data/network traffic in one chassis.

Whats in the Box?

• N5K-C5672UP-16G

Specifications:

General Information

• Number of Ports: 48
• Model Number: N5K-C5672UP-16G
• Item Dimensions - H x W x D (IN): 1.75 x 17.3 x 30
• Airflow: AFO (Front to Back)
• Power Source Type: AC
• Item Weight (LBS): 32
