Condition: Refurbished

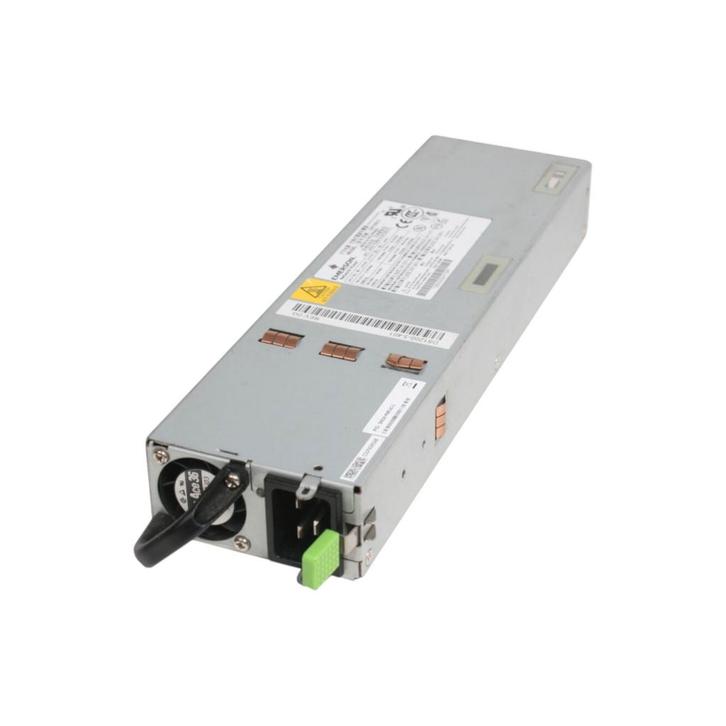

Emerson DS1200-3-401

The DS12003401 is a 1200W frontend ACDC server power supply designed for use in enterprise server and network equipment with distributed power architectures. It accepts a wide AC input range (typically 90–264VAC) and provides a main +12VDC output along with a standby +3.3VDC rail, making it suitable to power internal system components and standby circuitry. The unit features active power factor correction, active AC inrush control, hotplug capability, and support for redundant configurations (N+1). It’s built in an industry standard rackmountable form factor intended for 1U/2U server systems and includes digital control interfaces (e.g., I²C/PMBus) for monitoring and management. High efficiency and compliance with safety/EMC standards make it suited for data center and enterprise applications.

Features:

• High 1200W output capacity for heavy server and networking loads.
• Wide AC input range (90–264VAC) supports global voltage standards.
• Active Power Factor Correction (PFC) for efficient and compliant power draw.
• High conversion efficiency (typical ~91% at half load).

Whats in the Box?

• DS1200-3-401

Specifications:

General Information

• Model Number: DS1200-3-401
• Item Dimensions - H x W x D (IN): 1.57 x 3.2 x 11
• Airflow: AFO (Front to Back)
• Power Source Type: AC
• Item Weight (LBS): 2.95
