Condition: Refurbished

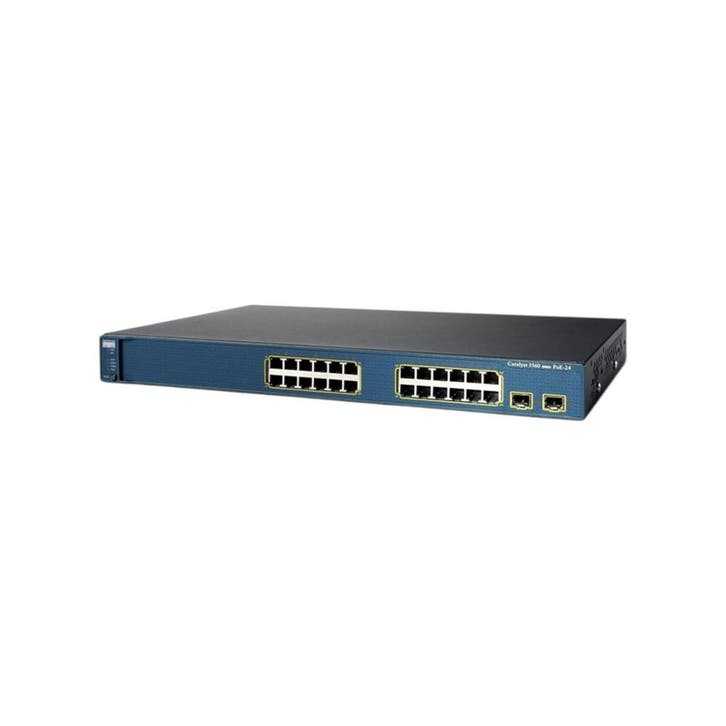

Cisco WS-C3560-24PS-E

The WSC356024PSE is part of Cisco’s Catalyst 3560 series. It is a fixedconfiguration, enterpriseclass access switch designed for small to mediumsize LAN environments (branch offices, wiring closets, etc.). It supports Power over Ethernet (PoE), offers Layer 3 capabilities, and runs the IP Services software image. It is well suited for networks that need to connect devices (phones, WAPs, cameras) while also doing some local routing and advanced LAN services.

Features:

• 24 × 10/100 Fast Ethernet RJ45 ports with PoE support; 2 × SFP Gigabit uplink ports.
• Supports IEEE 802.3af PoE (and Cisco’s prestandard PoE). Delivers up to ~15.4 W per port.
• ~32 Gbps switching capacity; ~6.5 to 6.6 million packets per second forwarding rate (with 64byte frames) in many listings.
• ~128 MB DRAM; ~16 MB flash memory.

Whats in the Box?

• WS-C3560-24PS-E

Specifications:

General Information

• Number of Ports: 24
• Model Number: WS-C3560-24PS-E
• Item Dimensions - H x W x D (IN): 1.73 x 17.5 x 11.8
• Airflow: N/A
• Power Source Type: AC
• Item Weight (LBS): 11.3
