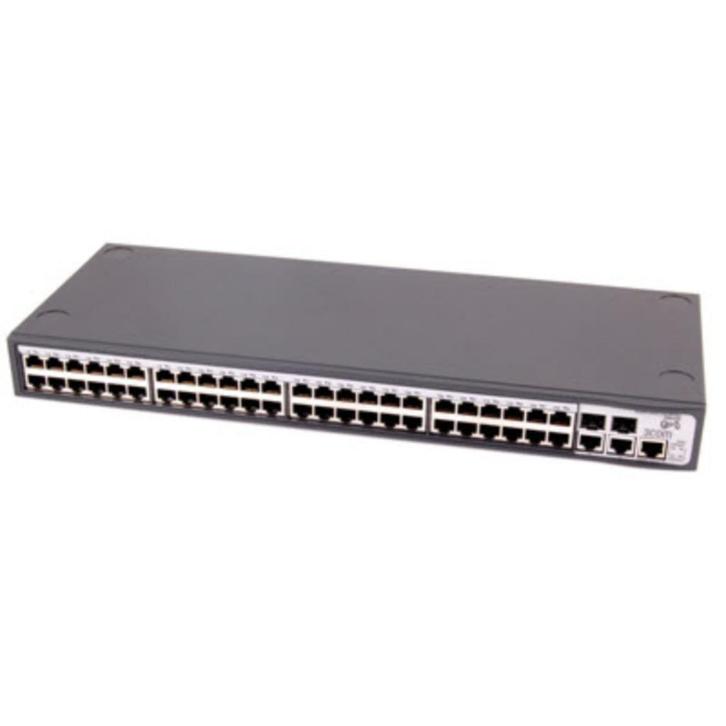

3Com Baseline Switch 2250-SFP Plus 3CBLSF50 JF537A

The “smart” voice-ready 3Com Baseline Switch 2250 Plus is a webmanaged Layer 2 10/100 Ethernet switch that delivers enterprise-class features, customized and priced for small- and mid-sized organizations. With an easy-to-use switch interface and advanced features (VLANs, IEEE 802.1X authentication and Rapid Spanning Tree), forty-eight 10/100 and two dual-purpose Gigabit ports, the Baseline Switch 2250 Plus is the most cost-effective way to provide a converged network. The Baseline Switch 2250 Plus has forty-eight 10/100 ports and two dual-purpose Gigabit ports (copper or SFP-based fiber) to connect to high-performance computers, servers, or core network backbones. The switch provides non-blocking performance – all ports perform at wirespeed which helps to eliminate network traffic bottlenecks. Manual link aggregation allows ports to be grouped together to form an ultrahigh-bandwidth connection that greatly expands bandwidth capacity to the network backbone.

• Manufactured by: 3COM
• Model/Part : 3CBLSF50
• Device Type: Switch
• Enclosure Type: External – 1U
• Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX
• Auxiliary Network Ports: 2×10/100/1000Base-T/SFP (mini-GBIC)(uplink)
• Data Transfer Rate: 100 Mbps
• Data Link Protocol: Ethernet, Fast Ethernet
• Remote Management Protocol: SNMP 1, SNMP 2, HTTP
• Connectivity Technology: Wired
• Communication Mode: Half-duplex, full-duplex
• Switching Protocol: Ethernet
• MAC Address Table Size: 8K entries
• Status Indicators: Link activity, port transmission speed, port duplex mode, power
• Features: Flow control, full duplex capability, layer 2 switching, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Quality of Service (QoS)
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x
• Expansion Slots Total (Free): 2 ( 2 ) x SFP (mini-GBIC)
• Interfaces: 48 x network node – Ethernet 10Base-T/100Base-TX – RJ-45 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
• Encryption Algorithm: MD5
• Authentication Method: Extensible Authentication Protocol (EAP)
• Compliant Standards: VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1
• Power Device: Power supply – internal
• Voltage Required: AC 120/230 V ( 50/60 Hz )
• Power Consumption Operational: 24 Watt
• Localization: United States
• Width: 17.3 in
• Depth: 6.9 in
• Height: 1.7 in
• Weight: 4.2 lbs
