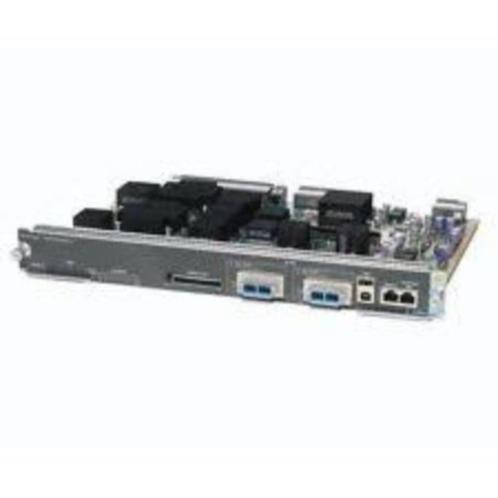

Cisco WS-X45-SUP6-E V08 Supervisor Engine for 4500-E series

The Cisco ® Catalyst ® 4500 Supervisor Engine 6-E with CenterFlex technology is an intelligent, high-performance, next-generation extension to the Cisco Catalyst 4500 Series optimized for customers deploying business-critical applications (Figure 1). Cisco developed application-specific integrated circuits (ASICs) specific to the Supervisor Engine 6-E that enable CenterFlex technology and deliver industry-leading centralized performance and configuration flexibility. CenterFlex technology enables granular optimization of real-time voice, video, and data communications to help ensure workforce productivity and profitability and customer success for organizations of all sizes.

Feature and Description WS-X45-SUP6-E V08

• Centralized switching capacity : 320 Gbps
• Per-slot switching capacity : 24 Gbps
• Throughput : 250 Mpps for IPv4, 125 Mpps for IPv6, 250 Mpps for L2 Bridging
• IPv4 Routing entries : 256,000
• IPv6 Routing entries : 128,000
• Multicast routes : 32,000
• CPU : 1.3 GHz
• CPU queues : 64
• Synchronous Dynamic RAM (SDRAM) : 512 MB upgradable to 1 GB
• Nonvolatile RAM (NVRAM) : No through Boot flash (64 MB)
• Security and QoS hardware entries : 128,000
• Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries : 12,000
• MAC addresses : 55,000
• Active VLANs : 4096
• Spanning Tree Protocol instances : 10,000
• Switched virtual interfaces (SVIs) : 4096
• Switched Port Analyzer (SPAN) : Maximum of 8 sessions: ingress and or egress
• V08
• Exclusief modules

Foto kan afwijken !!
