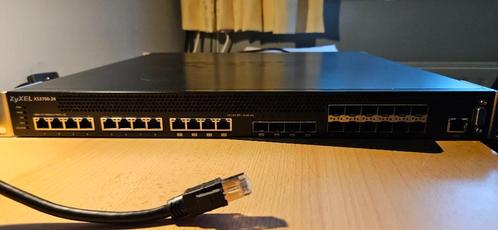

Zyxel XS3700-24 24-port 10GbE L2+ Switch

Zyxel XS3700-24 24-port 10GbE L2+ Switch

Let op : Bevestiging achterzijde incompleet.

Zyxel's 10GbE L2+ Managed Switch biedt line-rate prestaties voor virtualisatie en convergentie
Zyxel heeft zijn next-generation 10GbE L2+ Managed Switch – de XS3700-24 – ontworpen voor ongeëvenaarde veerkracht en non-blocking prestaties bij servervirtualisatie en het beheren van gigabitverkeer vanaf de netwerkgrens. De XS3700-24 biedt niet alleen een compleet pakket aan L2+-functies, maar ondersteunt ook basis Layer-3 routing. Dit omvat zowel statische routes als beleidsroutes om flexibele implementaties en ononderbroken netwerkbeschikbaarheid te garanderen. De ondersteuning voor redundantie op zowel hardware- als softwareniveau maakt de XS3700-24 de ideale 10GbE-backbone op ondernemingsniveau.

• Flexibele 10GbE-connectiviteit met 12 SFP+-poorten, 8 10G BASE-T-poorten en 4 SFP+-combopoorten
• Layer-2 plus (L2+)-functieset met ondersteuning voor statische en beleidsroutes en VRRP
• Hot-swappable voedingen en ventilatormodules
• Geen single point of failure dankzij hardware- en softwareontwerp
• Toekomstbestendig dankzij IPv6-ondersteuning
• Uitgebreide beveiligingsfuncties voor gegarandeerde netwerkbeschikbaarheid
• Beperkte levenslange garantie*

⚙️Specifications:

Model: XS3700-24
Product Name 24-port 10GbE L2+ Switch
Switch class Layer 2 Plus (Layer 3 Lite)
Port Density
Total port count 24
1000/10GBASE-T 8
10-Gigabit SFP+ 12
10 Gigabit combo (SFP/RJ-45) 4
Performance
Switching Capacity(Gbps) 480
Switching Forwarding Rate (Mpps) 357.14
Packet Buffer (byte) 4M
MAC Address 16k
System memory/flash 512 MB/32 MB
Power Requirement
Input 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) • Single PSU: 143.1
• Dual PSU: 161

🔌Physical Specification
Item dimensions (WxDxH)(mm/in.) 440 x 438 x 44/17.32 x 17.24 x 1.73
Item weight (kg/lb) 7.392/16.3
Packing dimensions (WxDxH)(mm/in.) 615 x 550 x 115/24.21 x 21.65 x 4.53
Packing weight (kg/lb) 9.721/21.43
Included accessories Power cord
Rack mounting kit
Environmental Specification
Operating Temperature 0°C to 50°C / 32°F to 122°F
Operating Humidity 10% to 95% (non-condensing)
Storage Temperature -40°C to 70°C / -40°F to 158°F
Storage Humidity 10% to 90% (Non-condensing)
MTBF (hr) 446034.72
Heat dissipation (BTU/hr) Single PSU: 487.971
Dual PSU: 549.01
Acoustic noise 53.7 dBA



✅Features:

Standard Compliance
IEEE 802.3z 1000BASE-X
IEEE 802.3an 10G BASE-T Ethernet
IEEE 802.3ae 10 Gbit/s Ethernet over fiber
IEEE 802.3x flow control
IEEE 802.3az EEE support
IEEE 802.1p CoS support
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3ah EFM (Link Discovery, Loopback)(V380)
IEEE 802.1ag CFM
Store and forward
N-way auto-negotiation
Resilience and Availability

IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.3ad LACP
VRRP
Loop guard
ErrDisable recovery
MRSTP (Zyxel proprietary)
Dual configuration files
Redundant power supply support
Dual flash images
Traffic Control

802.1Q static VLANs/dynamic VLANs: 1 K/4 K
Port-based VLAN
Protocol-based VLAN
IP subnet-based VLAN
Private VLAN
Voice VLAN
VLAN trunking
VLAN translation
VLAN ingress filtering
802.1ad VLAN stacking (Q-in-Q)
LACP algorithm of source/destination IP
GVRP
Selected Q-in-Q (V390)
L2PT
Security

802.1X
Port security
MAC authentication
Layer 2 MAC filtering
Layer 3 IP filtering
Layer 4 TCP/UDP socket filtering
BPDU transparency
Static MAC forwarding
Multiple RADIUS servers
Multiple TACACS+ servers
802.1x VLAN and bandwidth assignment by RADIUS
Login authentication by RADIUS
Login authentication by TACACS+
TACACS+ accounting
RADIUS accounting
Authorization on TACACS+
Authorization on console
SSH v1/v2
SSL
Intrusion lock
MAC freeze
DHCP snooping
ARP inspection
ARP freeze (V410)
Static ARP setting
Static IP/MAC binding
Policy-based security filtering
Port isolation
IP source guard
Limit number of MAC per VLAN
MAC search
Guest VLAN
ACL packet filtering (IPv4/IPv6)
PPPoE relay agent
PPPoE option82
PPPoE IA
CPU protection
MAC pinning
Interface related trap enable/disable (by port)
Quality of Service (QoS)

No. of hardware queues per port: 8
802.1p queuing method: SPQ, WRR, WFQ
Storm control: broadcast, multicast, unknown unicast (DLF)
Port-based rate limiting (Ingress/Egress): */64 kbps
Rate limiting, per IP/TCP/UDP per port
Policy-based rate limiting
Ingress CIR for bandwidth control
802.3x flow control
Port-based egress traffic shaping CIR/PIR supported
Policy based prioritization
Two Rate Three Color Marking (TRTCM)
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
DiffServ (DSCP)
Layer 2 Multicast

L2 multicast (Group)
IGMP snooping (v1, v2, v3)
IGMP snooping fast leave
Configurable IGMP snooping timer and priority
IGMP snooping statistics
IGMP throttling
MVR support
IGMP filtering
IGMP snooping immediate leave
IGMP snooping and proxy
IPv6 MLD snooping proxy
Routing
Static route
Policy-based route
IP port moving
Manageability

SNMP v1, v2c, v3
SNMP trap group
RMON (1, 2, 3, 9)
ICMP echo/echo reply
Syslog
IPv6 Management

IPv6 over Ethernet (RFC 2464)
IPv6 addressing architecture (RFC 4291)
Dual stack (RFC 4213)
ICMPv6 (RFC4884)
Path MTU (RFC 1981)
Minimum path MTU size of 1280 (RFC 5905)
Encapsulation for maximum PMTU of 1500
Neighbor discovery (RFC 4861)
DHCPv6 relay
Device Management

iStacking
Web interface
Management through console, telnet, SNMP
Firmware upgrade by FTP
Remote firmware upgrade by FTP/Web
Configuration saving and retrieving
Multiple login supported
Configure clone
Multilevel CLI
CLI (Cisco like)
DHCP servers
DHCP relay per VLAN
DHCP option 82
Daylight Saving
NTP
Port mirroring
Policy-based port mirroring
RJ-45 out-of-band management port
RS-232 out-of-band console port
sFlow
Remote port monitoring
MIB Information

Zyxel new private MIB
RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMPv2c/v3 MIB
RFC 1493 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON Group 1, 2, 3, 9
RFC 2011, 2012, 2013 SNMPv2 MIB
RFC 2233 SMIv2 MIB
RFC 2358 Ethernet-like MIB
RFC 2674 bridge MIB extension
RFC 2819, 2925 remote management MIB (V350)
RFC 3621 Power Ethernet MIB
RFC 4022 management information base for transmission control protocol
RFC 4113 management information base for user datagram protocol
RFC 4292 IP forwarding table MIB
RFC 4293 Management Information Base (MIB) for IP
Certifications

Safety
LVD
BSMI
EMC
FCC Part 15 (Class A)
CE EMC (Class A)
BSMI EN
RoHS
Level A

Zyxel One Network
ZON Utility

Discovery of Zyxel switches, APs and gateways*
Centralized and batch configurations
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
Smart Connect

Discover neighboring devices
One-click remote management access to the neighboring Zyxel devices

• Gateway supporting ZON utility is scheduled for future release.
