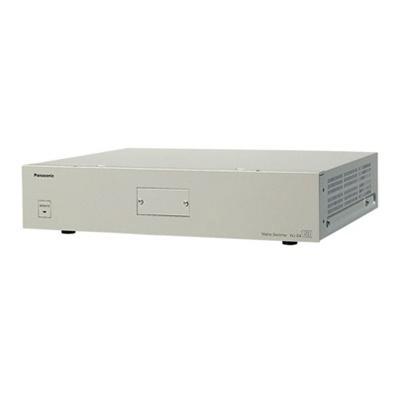

The Panasonic WJ-SX150A matrix switcher supports the connection of up to 16 cameras, 4 monitors and 4 system controllers. Additionally, this unit offers full pan, tilt, zoom and iris control of up to 4, RS-485 equipped cameras. Images outputted from this device can be displayed in full screen on 4 monitors or in various tour groups of up to 16 cameras on a single screen. At the event of an alarm or video loss, this unit can be set to follow a different tour sequence. Setup and configuration is done using a local PC via an RS-232C port with the required software included.

16-Channel
Supports the connection of up to 16 color or B/W cameras, 4 monitors and 4 system controllers. Any camera signal can be routed to any connected monitor.

PTZ Control
Controls up to 4 RS-485 equipped cameras for full pan, tilt, zoom and iris operation.

Optional Long Range Operation
The use of RG-59 cabling supports cable runs of up to 3000′ (900m) while maintaining control, synchronization and high quality images.

Multi-Image Display with Auto Switching
Images outputted from this unit can be displayed in full or in groups of up to 16 images on a single screen while following a programmed tour sequence. This allows cameras on specific zones or floors to be synchronized together on a designated group of monitors.

Alarm Function
At the event of an alarm, this unit can be set to follow a new sequential tour set.

Video Loss Detection
Alerts the operator to problems such as a power outage, severed cables or damaged cameras.

Secure User Management
Employs a sophisticated user management system to prevent improper use by unauthorized persons.

Specificaties

Signal System : NTSC
Channels : 16
Connectors

Video In: BNC x16
Camera Output (loop through): BNC x16
Monitor Output: BNC x1
External Input: BNC x1
External Output: BNC x1
RS-485 (camera) Port: x1 (6-conductor modular jack)
Data Port: RS-485 x1 (6-conductor modular jack)
Alarm Port: 25-pin D-sub connector
Serial Port: 9-pin D-sub connector
Camera Switching Input: RCA x1
Power Requirements : 120 VAC
Power Consumption : 60W
Operating Temperature : 14 – 122 F, -10 ~ +50 C
Dimensions (WxHxD)16.6 x 3.6 x 13.7″ , 420 x 88 x 350mm
Weight : 13.2 lb ,6 kg

Dit product is z.g.a.n. in orginele doos !!
